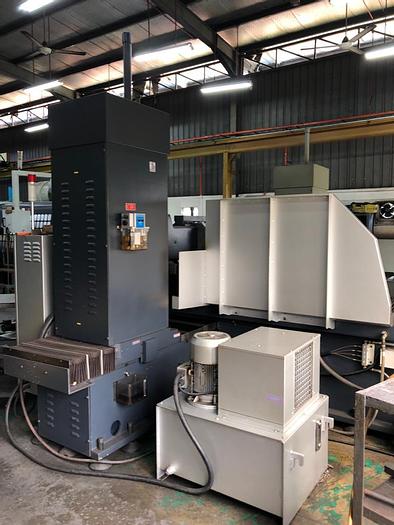

2019 PROTH PSGC-60120AHR GRINDING MACHINE

Max. travel (cross x longitudinal) : 660mm x 1350mm

Spindle center height from table : 700mm

Max height from table top to bottom of standard wheel : 522mm

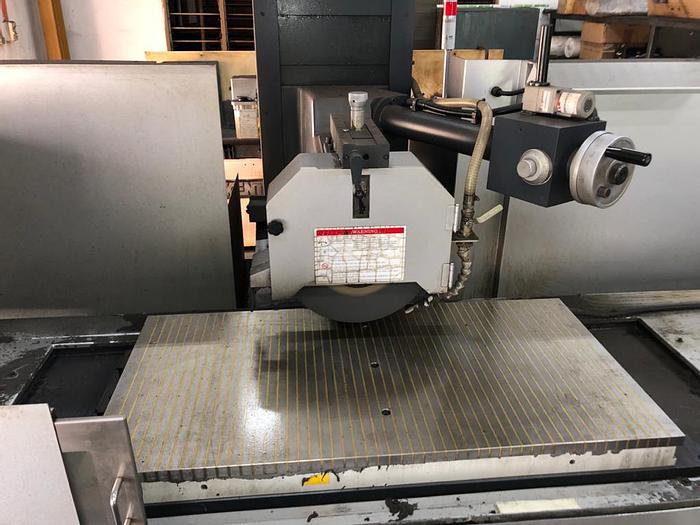

Grinding surface of table : 600 x 1200mm

Hydraulic table speed : 1-25m/min

Intermittent cross feed-approx.(Electro-mechanical) : 0.1-15mm/feed

Continuous cross feed-approx.(Electro-mechanical) : 2000mm/min(50Hz),2400mm/min(60Hz)

Hand feed per revolution : 5mm

Hand feed per division : 0.02mm

Rapid traverse approx.(option) : 200mm/Min

Hand feed per revolution : 0.25mm

Hand feed per division : 0.002mm

Dimension(O.D x W x I.D) : 355x50x127mm

Spindle speed(50/60Hz) : 1500 RPM

Net weight : 8200kg

Dimension (L x W x H) : 4250 x 2270 x 2540 mm
