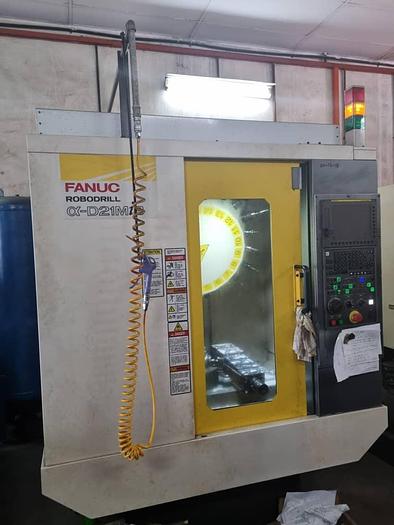

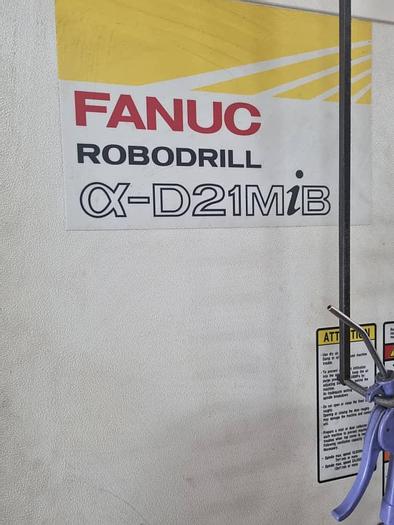

2018 FANUC ROBODRILL x-D21MiB CNC MILLING MACHINE

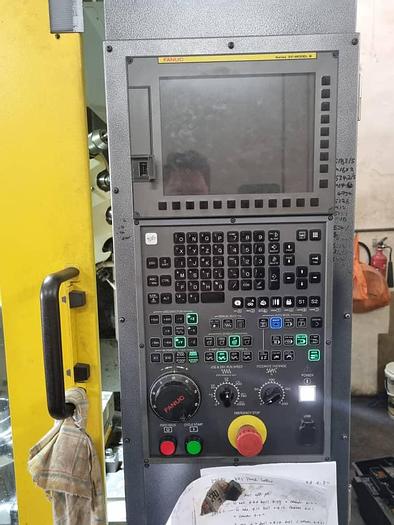

CONTROLL UNIT : FANUC SERIES 31i-B

X AXIS : 500mm

Y AXIS : 400mm

Z AXIS : 300mm

SPINDLE TAPER : BT30

SPINDLE SPEED : 24.000 RPM

SERVO MAIN MOTOR RATED POWER : 3.7Kw

SERVO MAIN MOTOR 30MINS POWER kw11

X/Y RAPID FEED SPEED m/min48/48

Z RAPID FEED SPEED m/min48

FEEDRATE mm/min1~30000

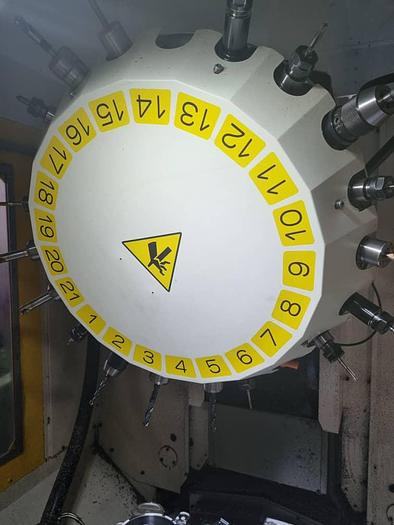

TOOL MAGAZINE CAPACITY : 21 pcs

TOOL CHANGE TIME : 1.6s

POWER SUPPLY 3 PHASE 10kvA

POWER REQUIREMENT : 220V - 50/60Hz

MACHINE DIMENSION : 2165×2040×2236mm

MACHINE WEIGHT : 2000Kg

X/Y/Z POSITION ACCURACY ±0.006mm

X/Y/Z RE-POSITION ACCURACY ±0.004mm
