2022 Tsugami B0325-iii Swiss Type CNC Automatic Lathe

Maximum Bar Stock : 32 mm / 1.26″

Axis : 5

Sliding Headstock / Guide Bushing : YES

CONVERTIBLE: Run w/o Guide Bushing (chucker) : YES

Max Headstock Stroke w/ Guide Bushing

Max Headstock Stroke w/o Guide Bushing : 330 mm / 12.99”

Tool Positions (std / max) : 31

Live Tool Positions (std / max) : 4/8

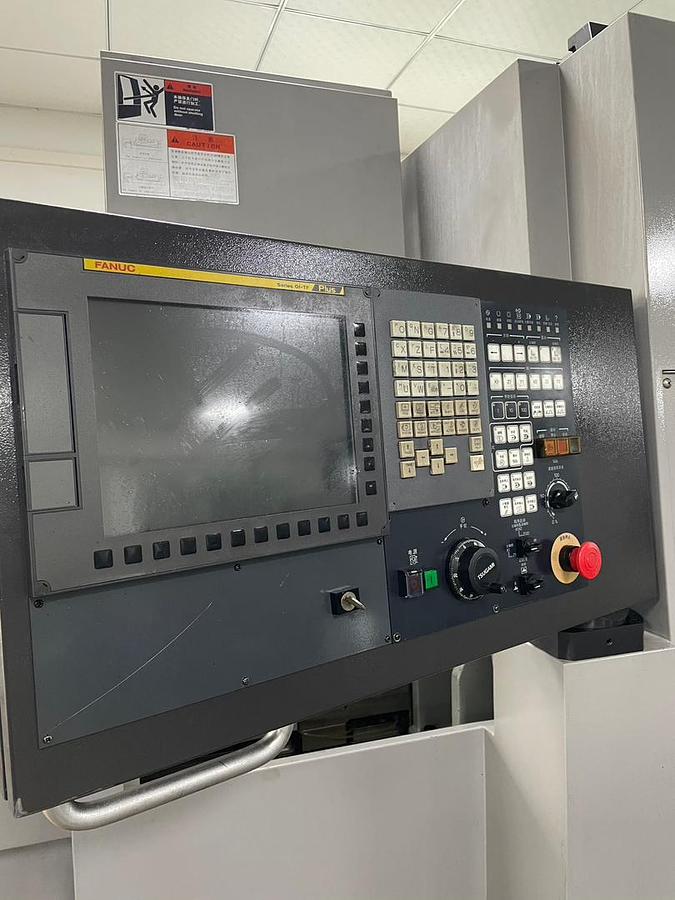

Control : FANUC 0i-TF Plus

Main Spindle Speed : 200 – 8,000 rpm

Sub Spindle Speed : 200 – 8,000 rpm

Live Tool Speed : 6,000 rpm

Main Spindle Motor : 3.7 / 5.5 kW

Weight : 4,000 kg / 8,814 lbs.

Footprint: W x D x H : 2628 x 1280 x 1970 mm

103.5″ x 50.4″ x 77.5″
