2015 APEC G3050-5L Gantry Type Machining Center

Taiwan Asia Pacific Elite Gantry 5-Axis Machining Center

Model: G3050-5L

Worktable: 5000*3000 mm, manufactured in 2015, XYZ travel: 5000x3000x1000 mm

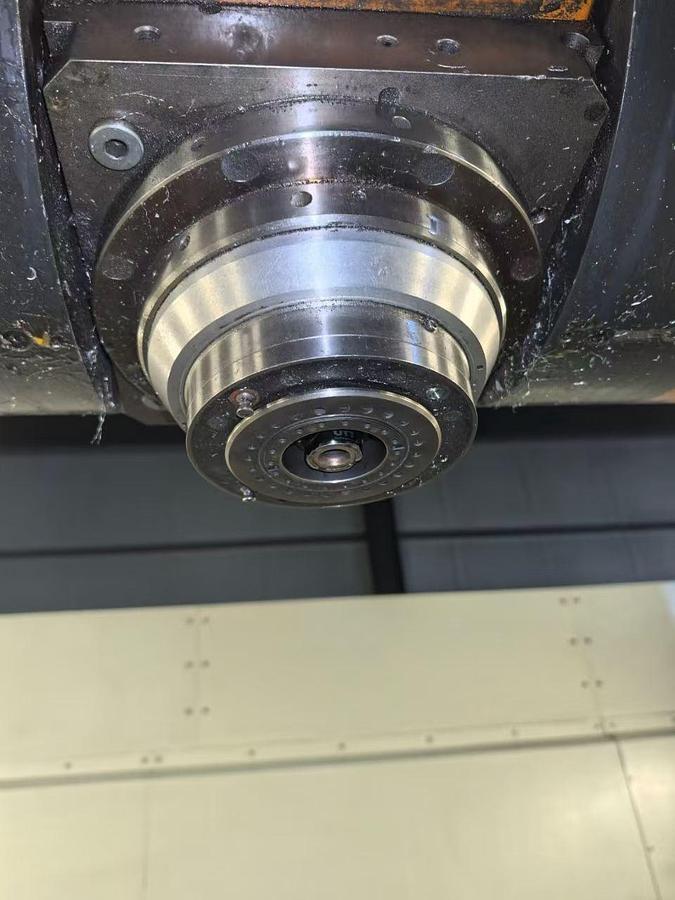

Linear motor, HSK63 spindle speed: 24000 rpm, A=±125° C=±360°

Distance from spindle to worktable: 300-1300 mm

Rapid feed: XY=60, Z40 m/min

Maximum tool length: 300 mm

Maximum tool diameter - adjacent tool change: Ø75 mm

Maximum tool diameter - no adjacent tool change: Ø150 mm

Spindle power: 37/46 kW, 24-tool magazine

With tool setter

-U-shaped structure design

-XY axis motor drive

-Z axis twin-screw drive
