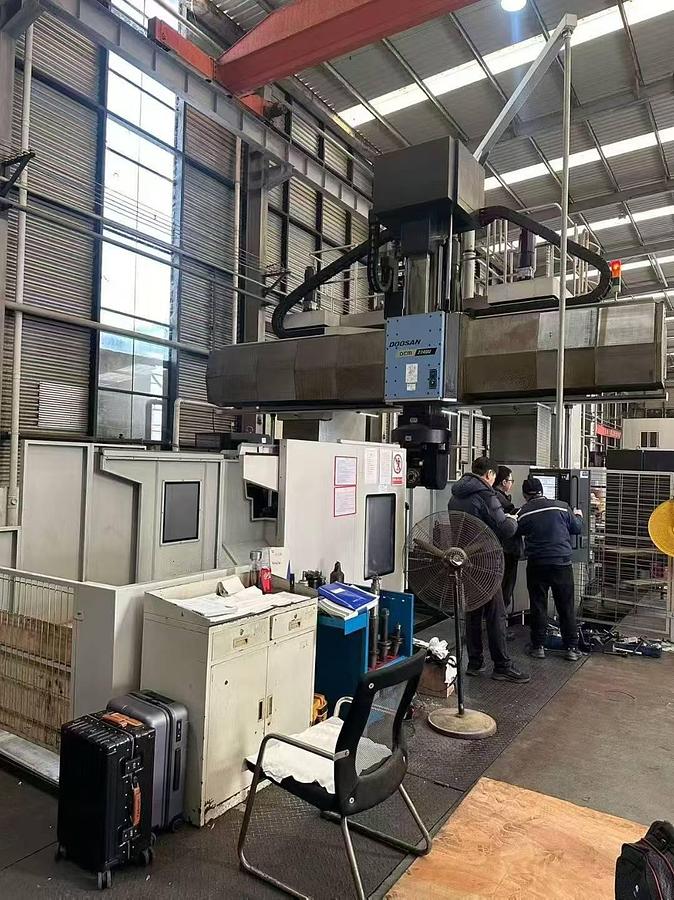

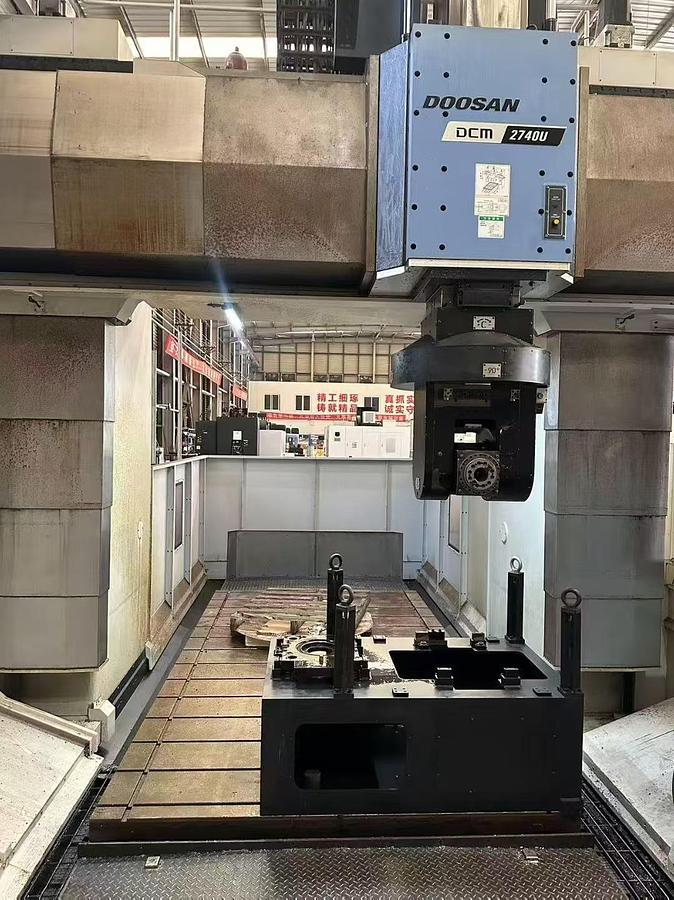

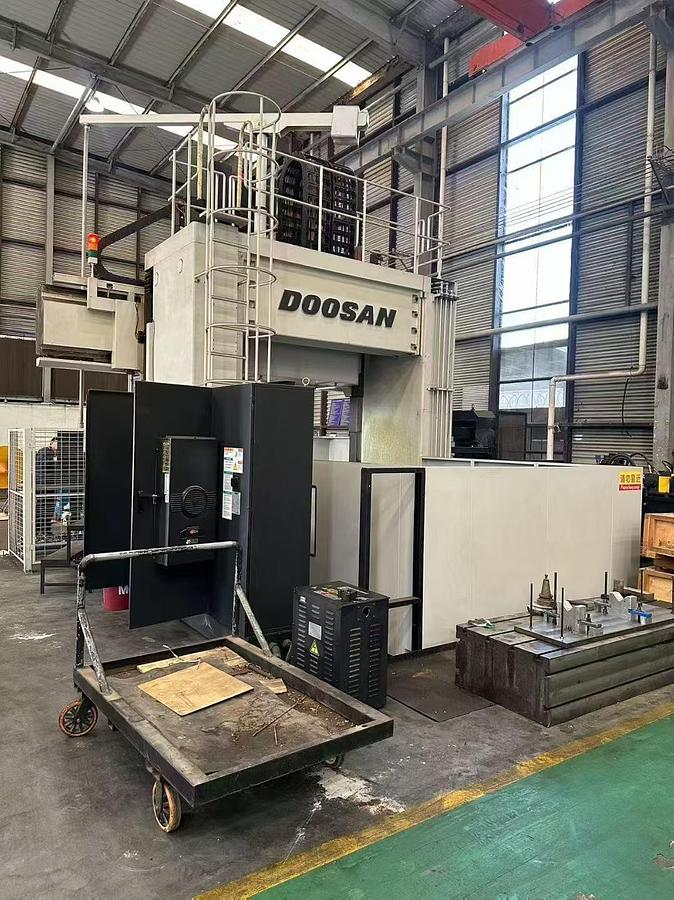

2015 DOOSAN DCM 2740U CNC Machining Center Bridge type double column

Model :DCM-2740U

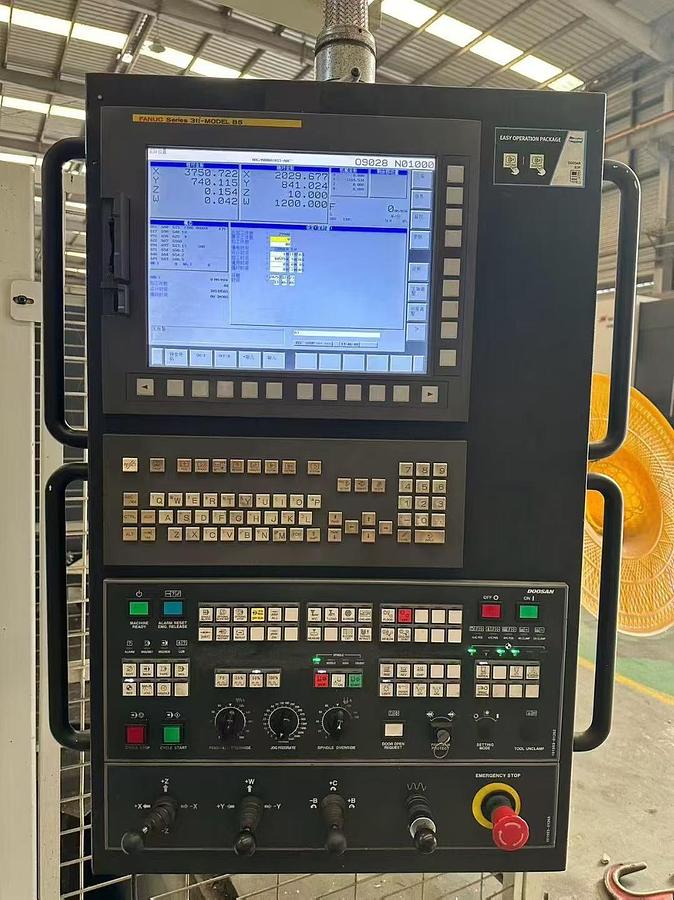

System : 31i-B5 (Fanuc)

Worktable : 2200×4100mm

Gantry Width : 2.7m

XYZW Travel : 4.2/3.2/700/1.1 Meter

Year : 2015

Main Electrical Structure and System : Fanuc

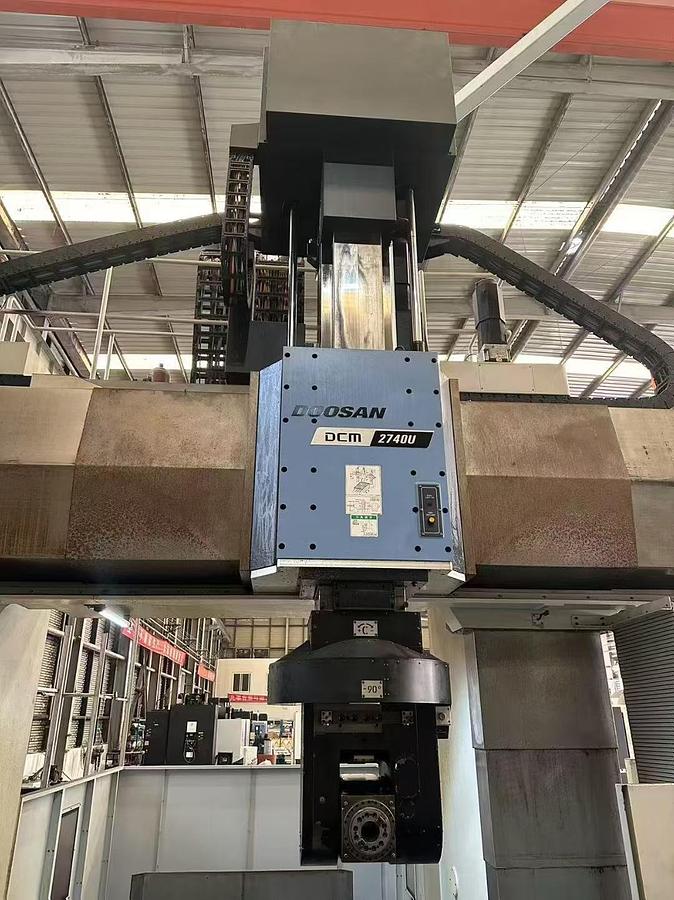

Spindle : Headtech

Spindle Motor : FANUC

X/Y/Z Axis Servo Motor : FANUC

Lubrication System : A-RYUNG

X/Y/Z Ball Screw : TSUBAKI

Pneumatic Components : SMC

X/Y/Z Axis Guideway : THK

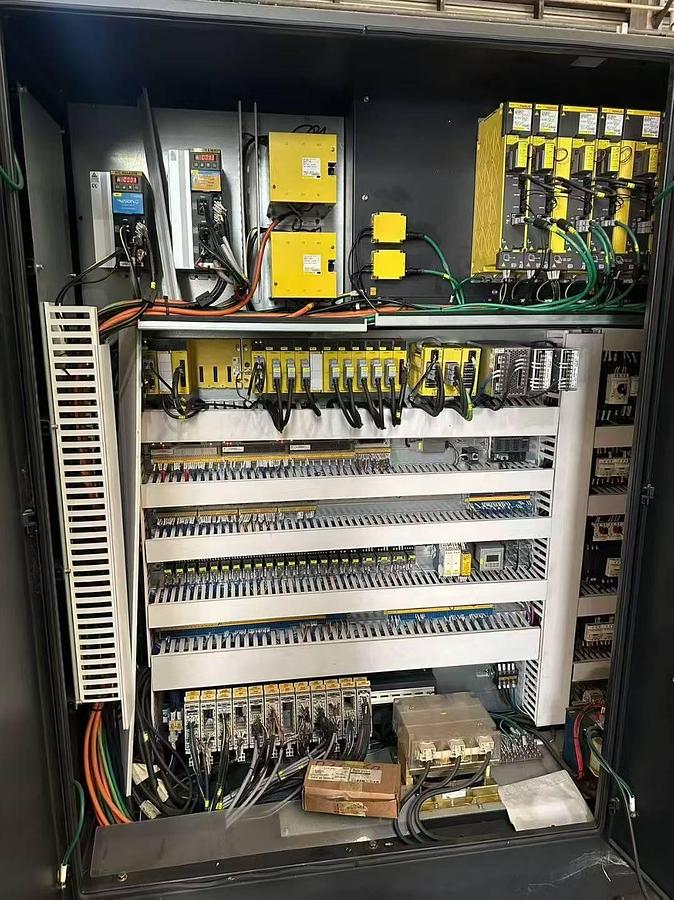

Electrical Accessories / Electrical Components : LG

X/Y/Z Ball Screw Bearing : NSK

Spindle Head Tool Holder Type : BT50

X/Y/Z Travel / X/Y/Z Stroke : 4250/3200/700mm

Maximum Spindle Speed : 4000r/min

Spindle Motor Power : 37/30KW

Spindle Motor Speed : 3000r/min

Drive Motor Type : FANUC 3li-5B

Machine Height : 7400mm

Machine Weight : 65000kg
