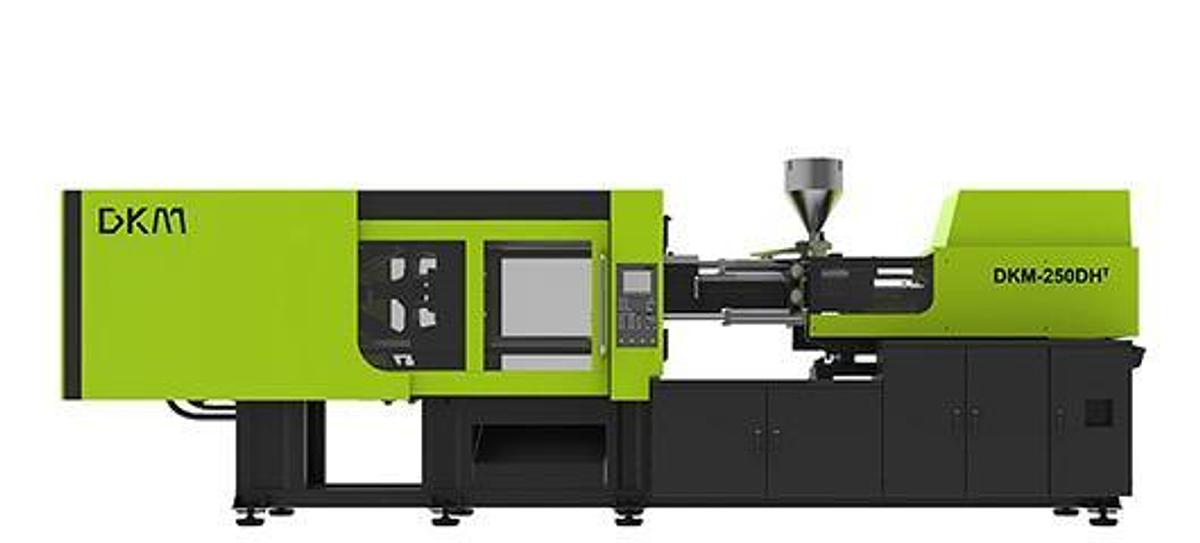

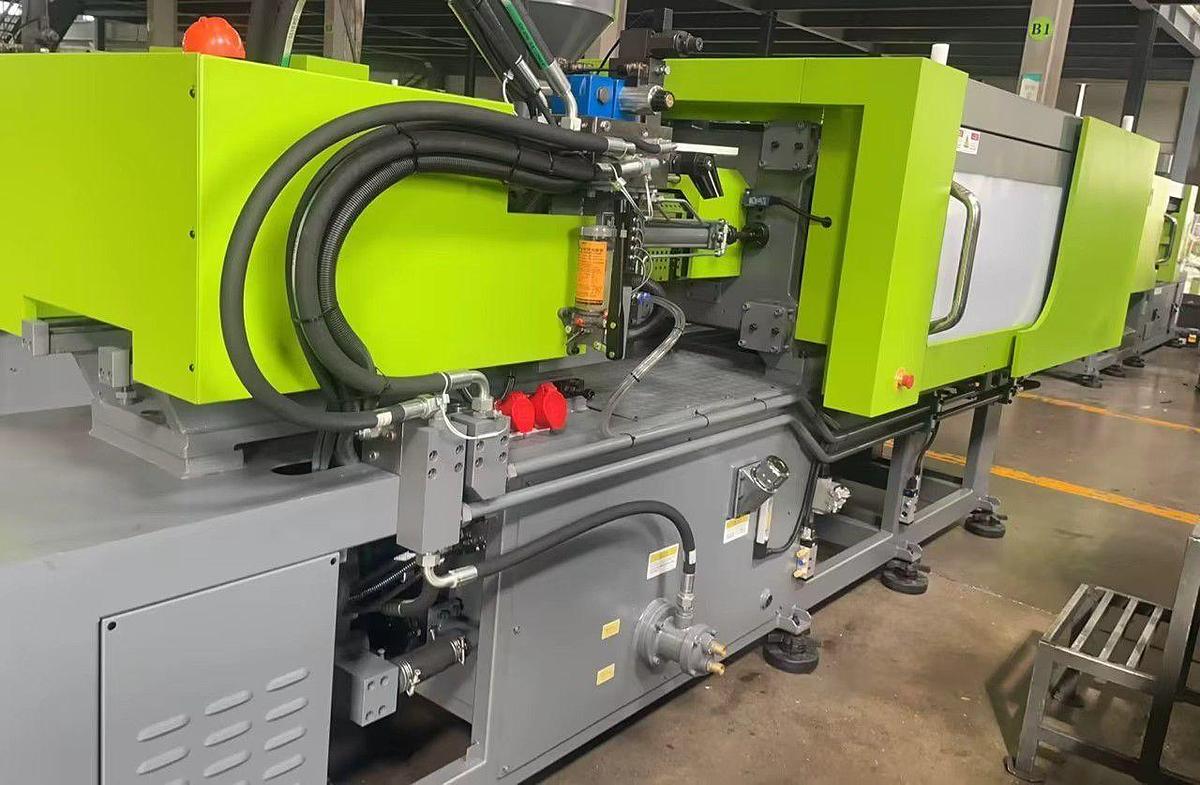

DKM Dakumar Injection Moulding Machine

1. Clamping Unit

Clamping Force: 130 Tons / 1300 kN

Toggle Stroke: 390 mm

Space Between Tie Bars: 410 mm x 410 mm

Max/Min Mold Thickness: 145 - 460 mm

Ejection Stroke: Approx 100-120 mm

2. Injection Unit (General Purpose)

Screw Diameter: Available in different sizes, commonly 42mm - 45mm (varies by A/B screw configuration)

Shot Weight (PS): Approximately 282g - 324g (varies by screw)

Injection Pressure: 142 - 169 MPa

Screw L/D Ratio: 18.5 - 20.6

3. Special Features

Energy Saving: Servo motor system reduces energy consumption.

Low Noise: Operating noise below 75 dB.

Control System: Techmation controller (commonly 15-inch high-definition screen).

Application: Suitable for general molding, PVC molding, or high-speed applications depending on the specific model suffix.

4. Machine Dimensions & Weight

Machine Weight: Varies, but usually around 4.5 - 5 Tons.

Dimensions: Approximately 4.3m x 1.5m
