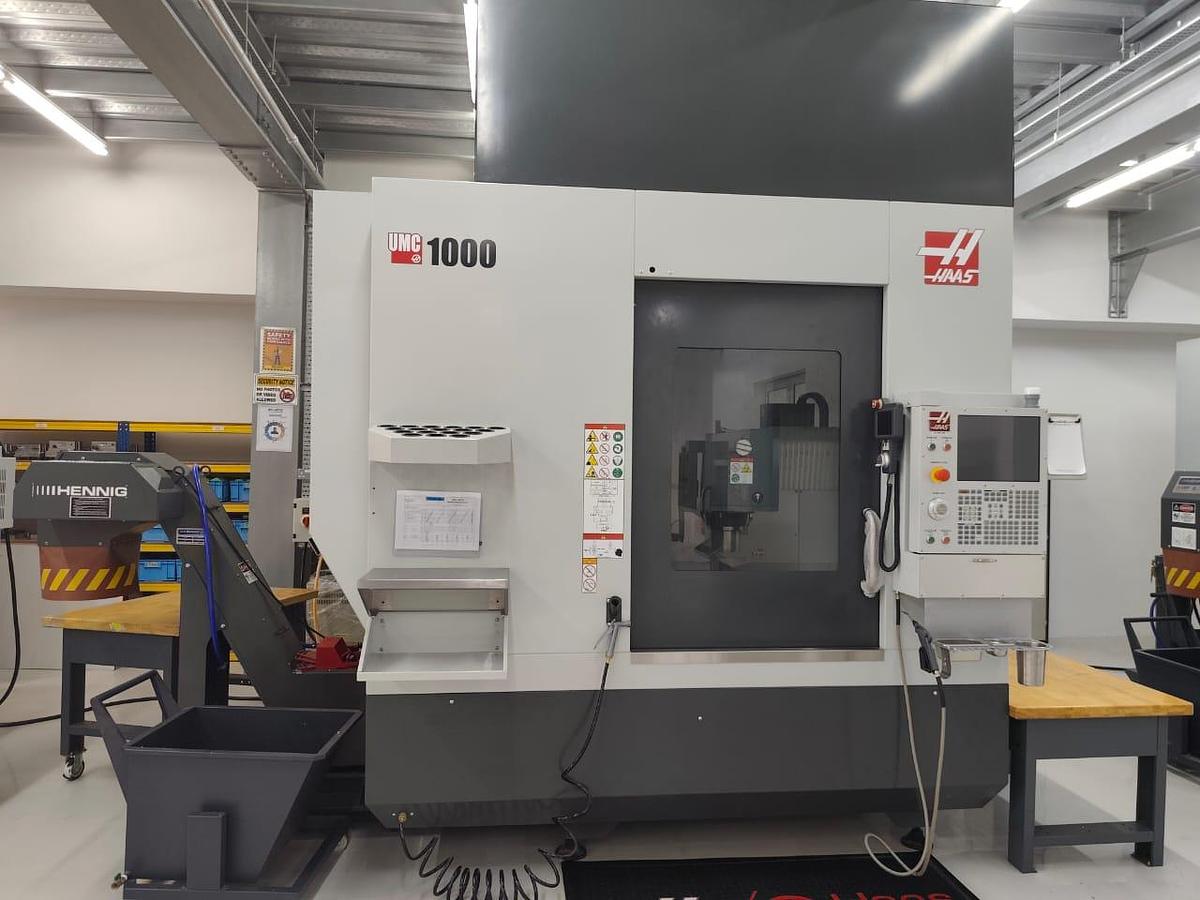

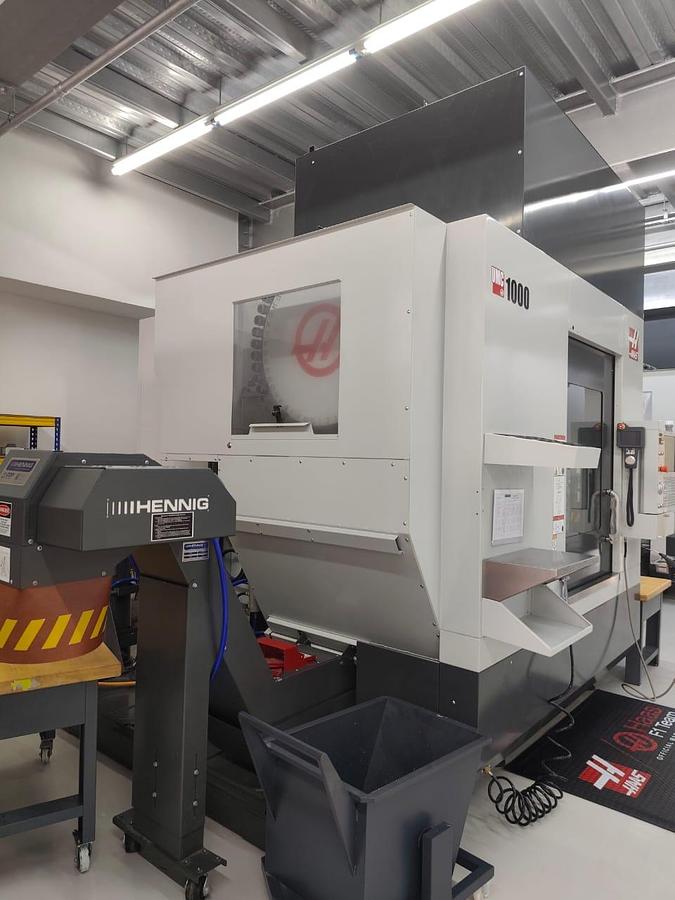

2024 HAAS UMC-1000 5-axis machining Universal Machines Center

X Axis Travel: 40"

Y Axis Travel: 25"

Z Axis Travel: 25"

B Axis Travel: 120 - 35Deg

C Axis Travel: 360Deg

Spindle Nose to Table: 4"-29"

Rapid Rate X Axis: 900 IPM

Rapid Rate Y Axis: 900 IPM

Rapid Rate Z Axis: 900 IPM

Max Table Load: 1,000 LBS

Spindle Motor: 30 HP

Spindle Speed: 15,000 RPM

Spindle Taper: BT40

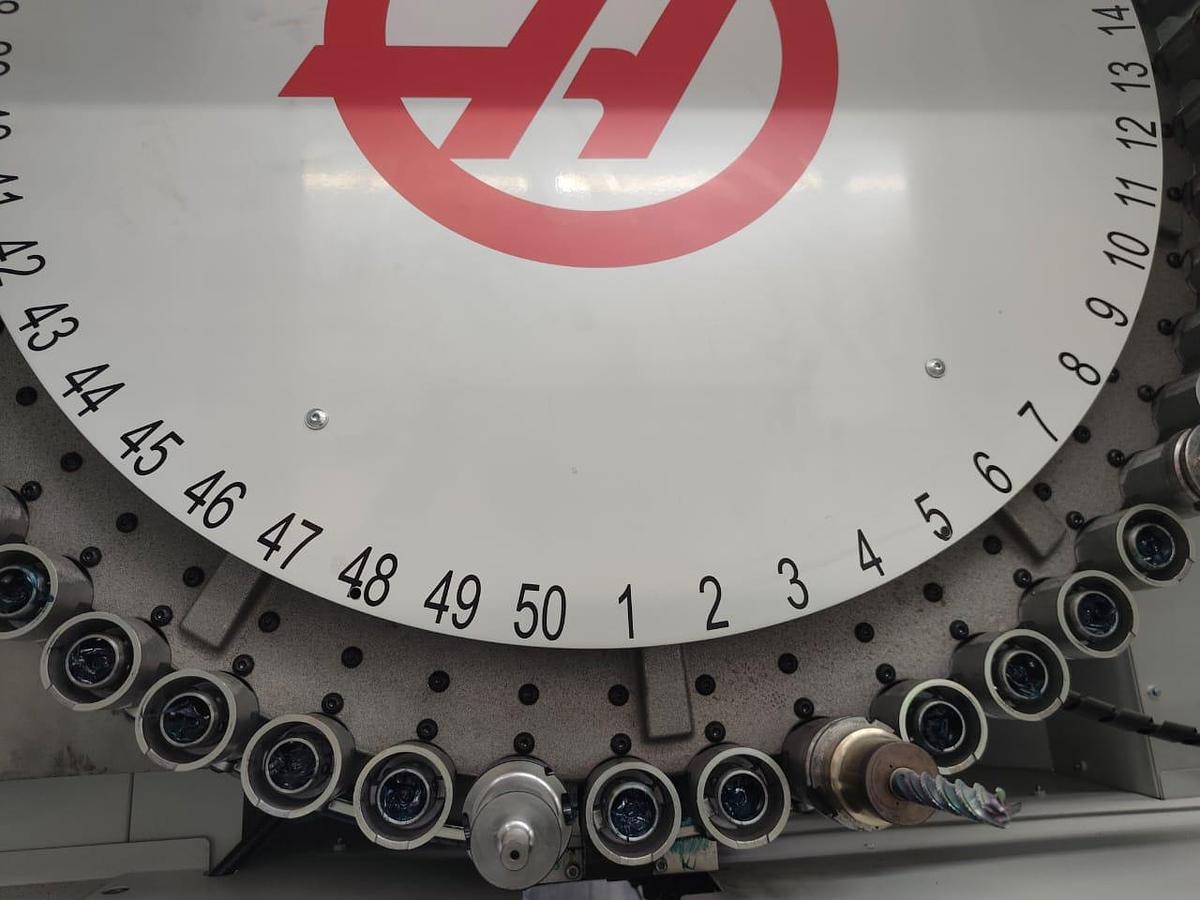

Tool Changer: 50 ATC

Max Cutting: 650IPM

Max Tool Diameter: 2.5"

Max Tool Diameter: 5"

Max Tool Length: 12"

Max Tool Weight: 12 lbs

Tool-to-Tool (avg): 2.8 sec

Chip-to-Chip (avg): 3.6 sec
