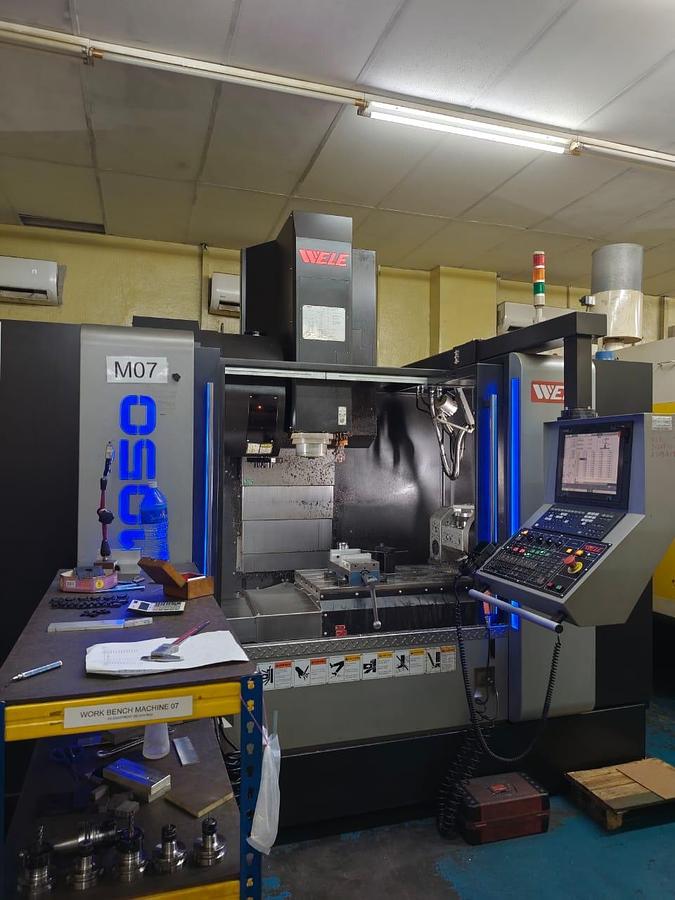

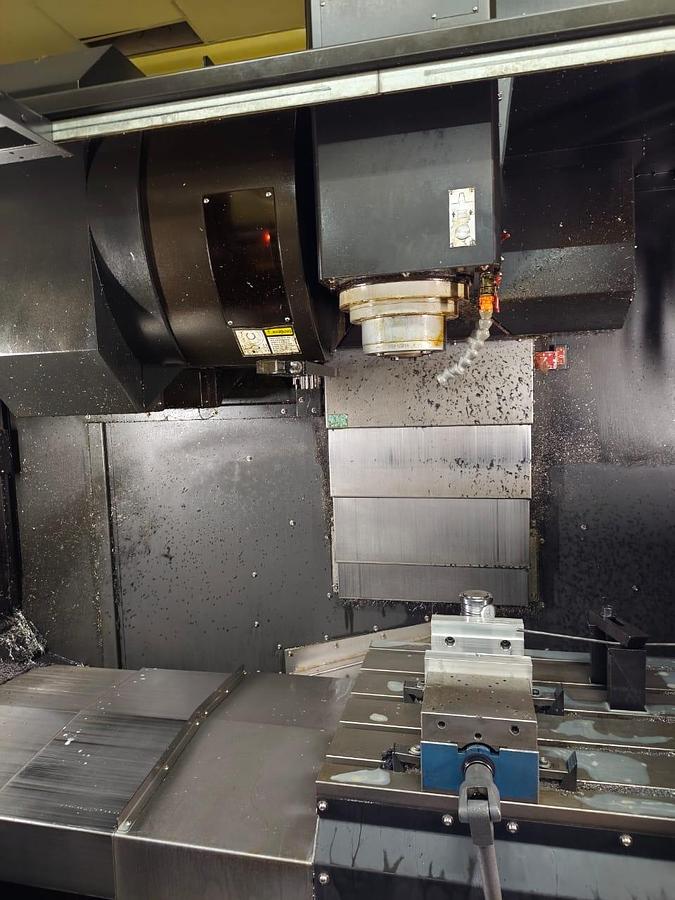

USED 2022 WELE AQ 1050 CNC VERTICAL MACHINING MILLING MACHINE CENTER

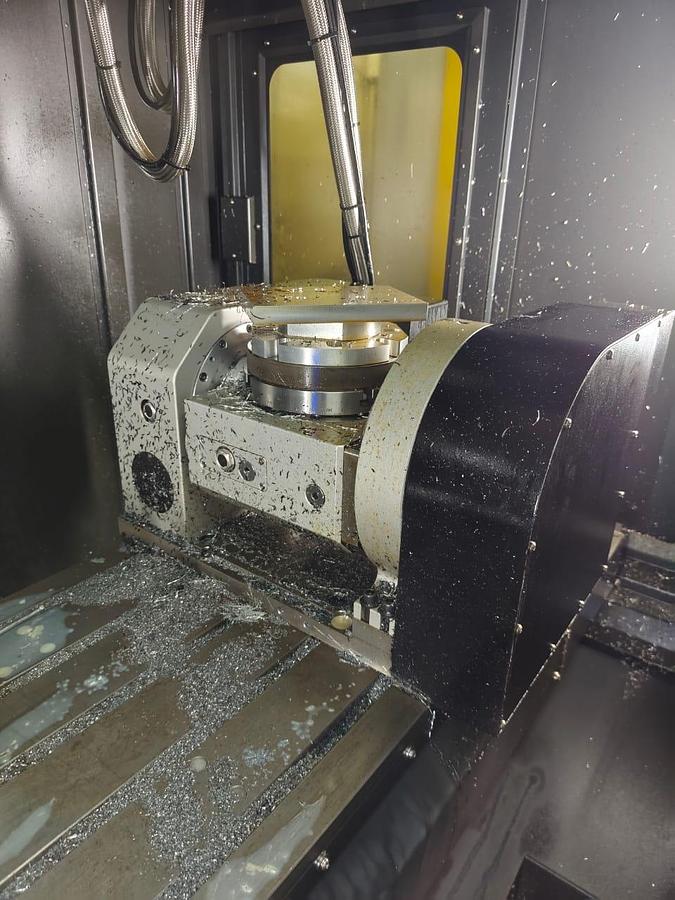

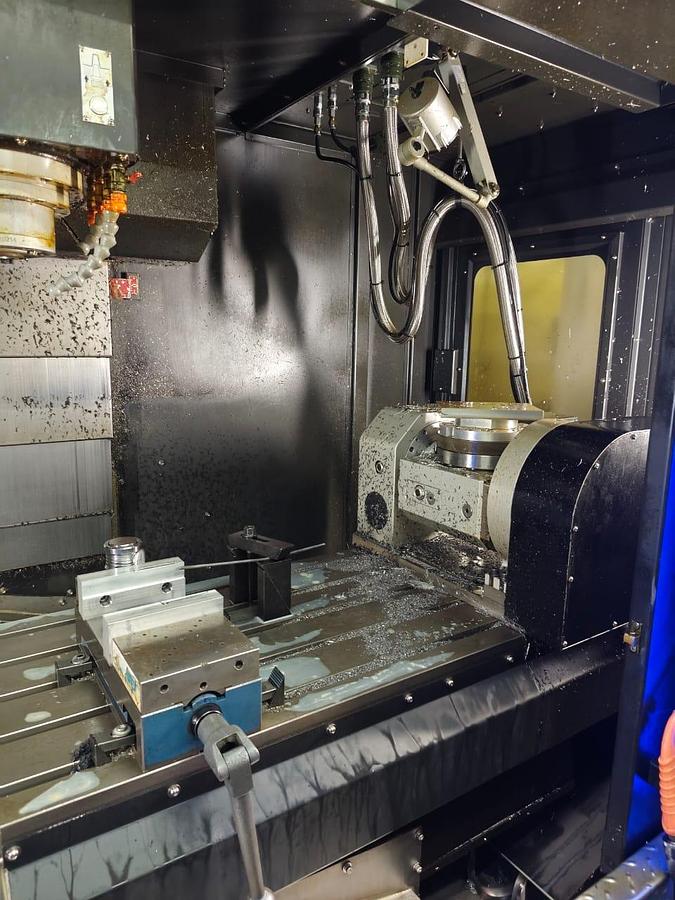

COME WITH CNC ROTARY TABLE

Brand : Detron (Taiwan)

Model : GFA-210S

-Compact Tilting 5 Axis ,Pneumatic Clamping.

-Chuck size : 210 mm

Table Size : 47.2" x 20.1" (1,200 mm x 510 mm)

X-axis Travel : 40.2" (1,020 mm)

Y-axis Travel : 20.1" (510 mm)

Z-Axis Travel : 20.1" (510 mm)

Distance from Spindle Nose to Table Top : 4.9" to 25" (125 mm to 635 mm)

Spindle Speed : 15000 RPM (Build In Spindle)

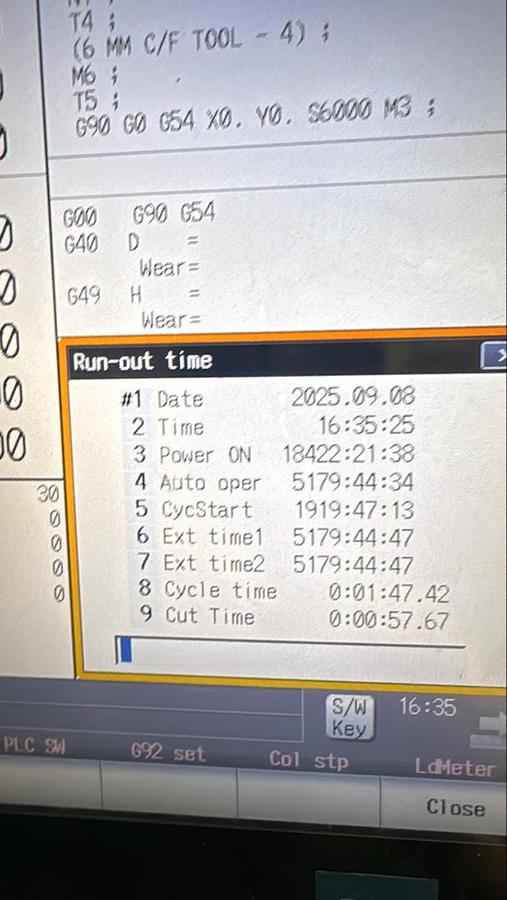

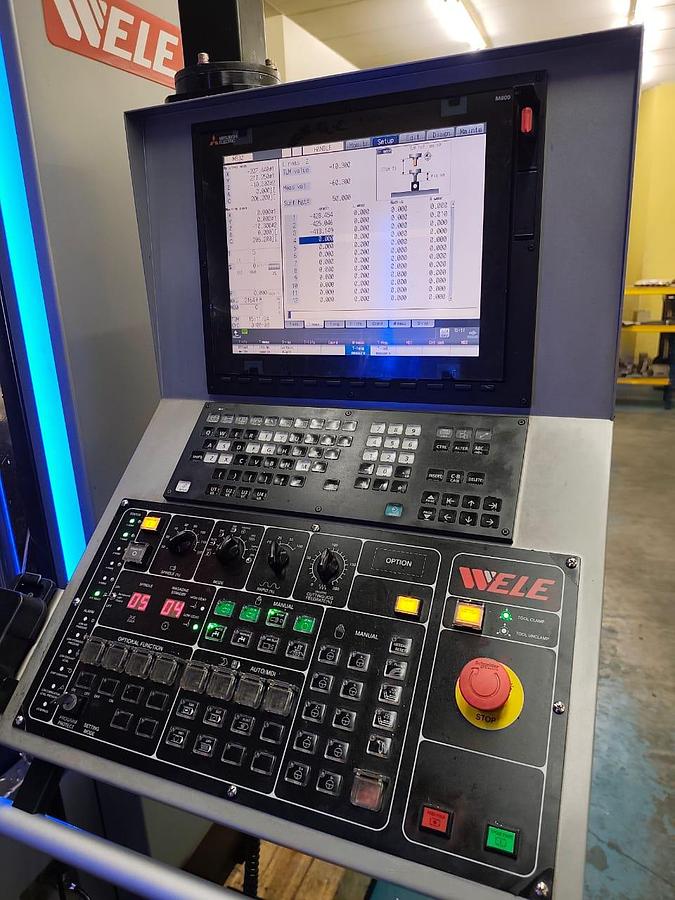

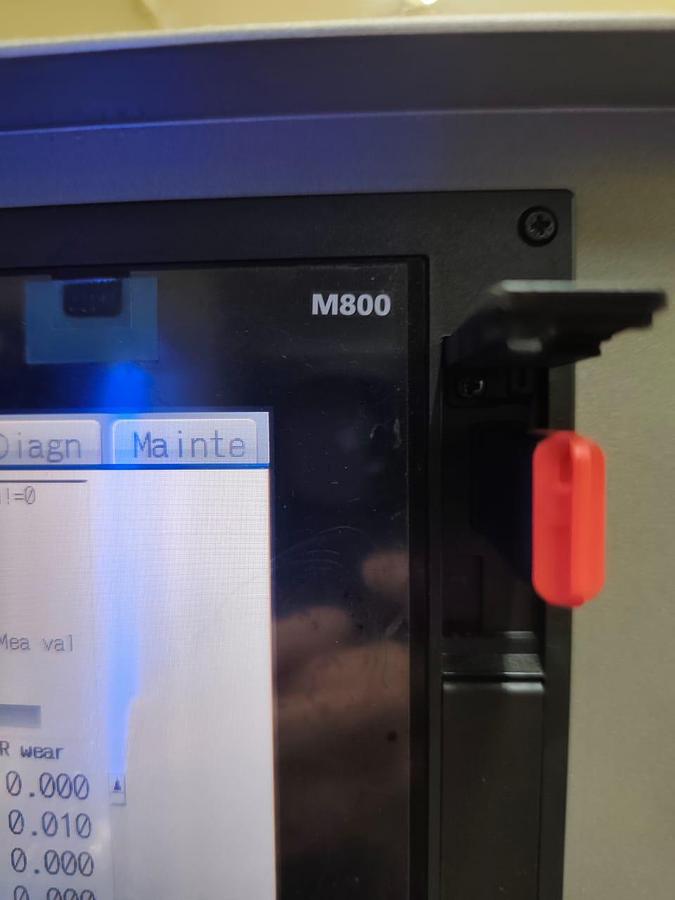

Controller : Mitsubishi M800

Tool Taper : BBT40

ATC : 24 Tool

Year : 2022

Linear Guide Way

Machine Dimension (L*W*H) : 3100mm x 2150mm x 2900 mm

Weight Of Machine : 7200 Kg
