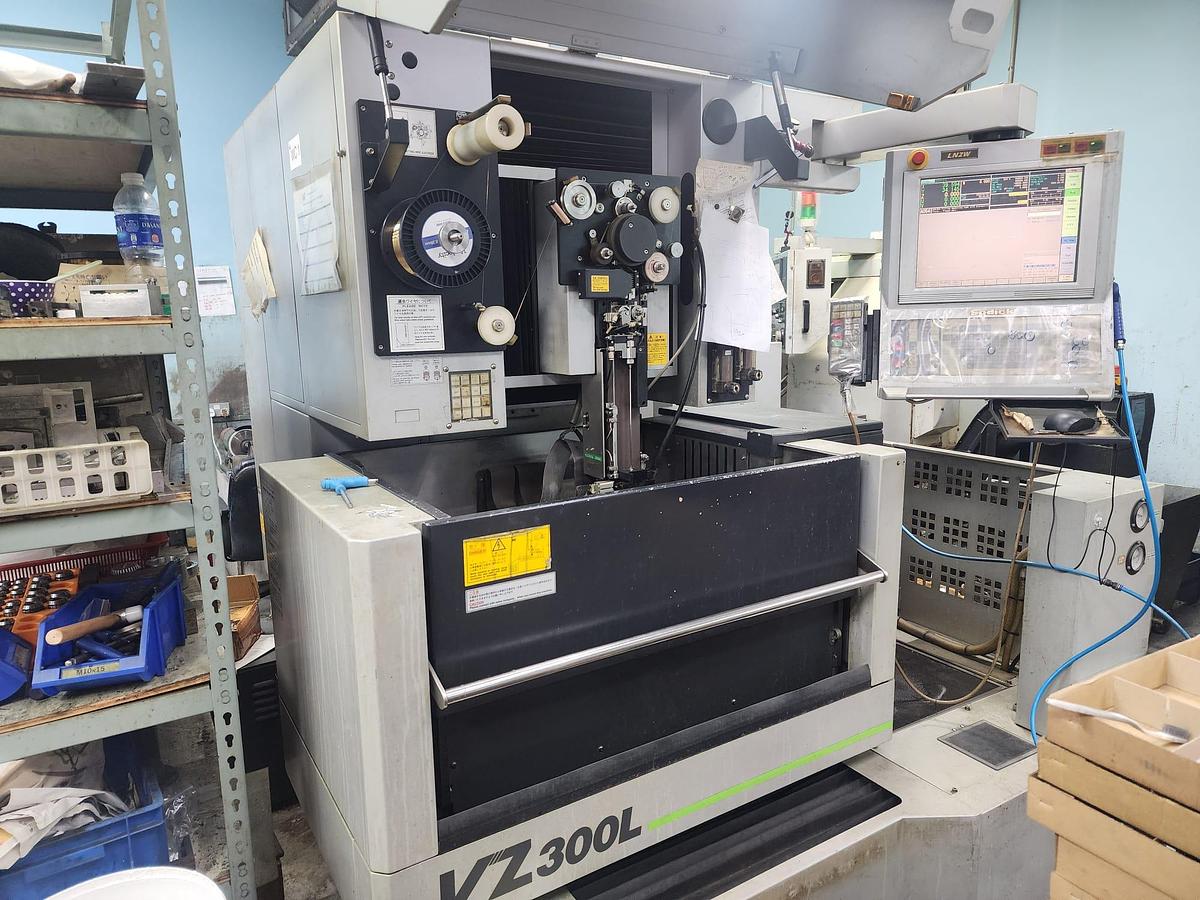

2014 SODICK VZ300L SODICK WIRECUT EDM MACHINE

X-AXIS Movement: 350 MM

Y-AXIS Movement: 250 MM

Z-AXIS Movement: 220 MM

- Work tank inner size (w x d) 810 x 650 mm

- Max. Size of workpiece(w x d x h) -submerge 780 x 570 x 200 mm

- Max. Size of workpiece (w x d x h) - flushing 780 x 570 x 215 mm

- Max. Weight of workpiece - submerge 350 kg

- Max. Weight of workpiece - flushing 500 kg

- Auxiliary table travel (u x v axis) 80 x 80 mm

- Wire diameter Ø0. 15-Ø0. 3 mm

- Taper angle / thickness ±15° / 120 mm

- Dielectric fluid capacity 550 liters

- Power consumption (3 ph. 50/60 hz) 11 kva // max. Machining current 32a

Made In Thailand
