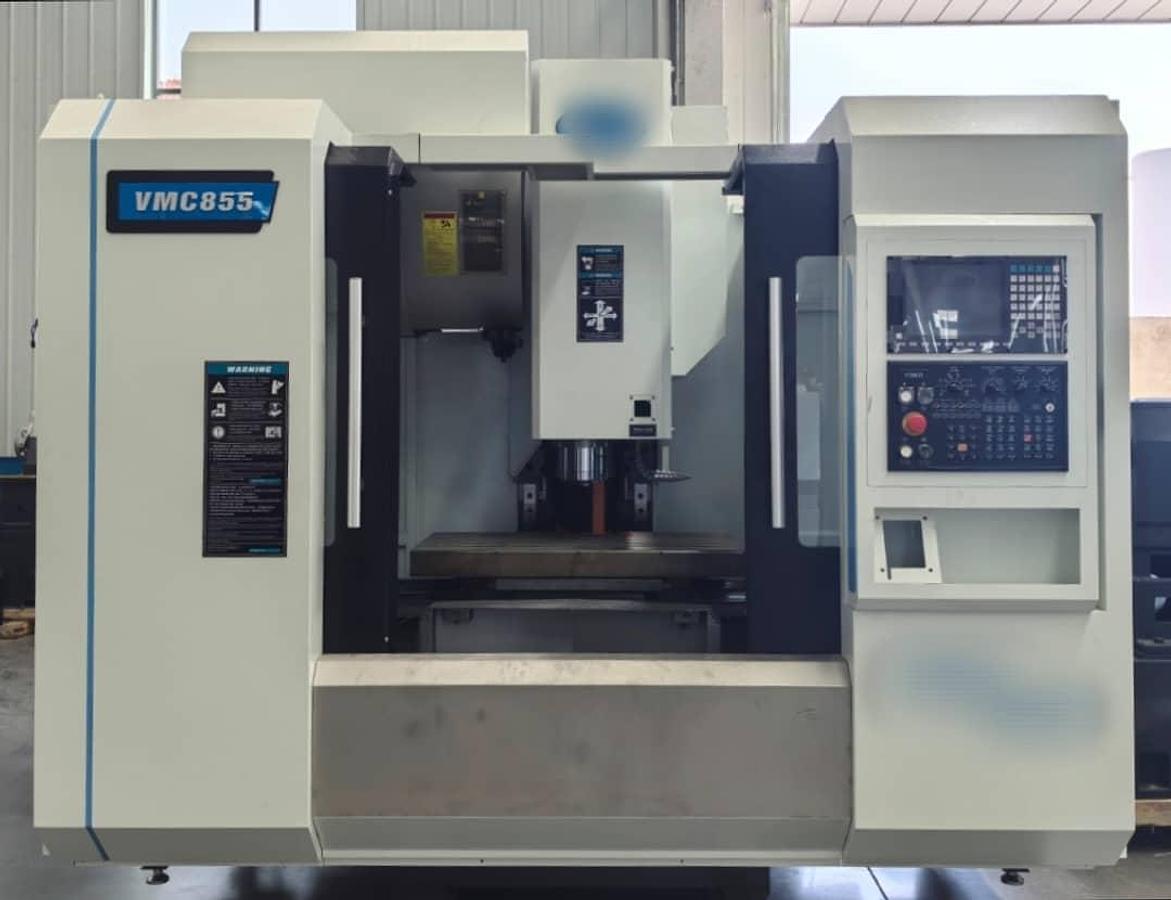

SMART CHOICE SC-VMC855 CNC MILLING MACHINING CENTER

SMART CHOICE SC-VMC855 CNC MILLING MACHINING CENTER

Contact us for price

Location:Malaysia

Description

Brand : SMART CHOICE

Model : VMC 855

Controller : Fanuc 0I-MF Plus (RPM 12000)

Fanuc Alpha Servo Amplifiers

X Axis Is Linear Roller Guide Way Diameter : 35 mm

Y and Z Axis Is Linear Roller Guide Way Diameter : 45 mm

X,Y,Z (Three Axis) Ball Screw Diameter : 40 mm with Double Nut

Work Bench Size : 1000 mm x 550 mm

X - Axis Travel : 800 mm

Y - Axis Travel : 550 mm

Z - Axis Travel : 550 mm

Spindle Nose To Work Table : 120-670 mm

T-Slot (Number x Width x Distance) : 5-18-90 mm

Distance From Working Center To Column Track Surface : 590 mm

Spindle Taper : BT-40-Diameter 150 mm

Max Spindle Speed : RPM 12000

Spindle Type : Direct Connection

ATC Type : Arm Type

ATC Tool : 24 Tool

Spindle Motor : 20 Hp

X,Y,Z Three Axis Rapid Displacement : 32*32*24 M/min

Three Axis Cutting Feed Rate : 1-10000 mm/min

Repeatability JIS : ± 0.005 mm

Positioning Accuracy JIS : ± 0.008 mm

Workbench Load : 500 Kg

Machine Weight : 5500 Kg

Machine Diamensions : 2600 x 2380 x 2400 mm


Main Configuration :

Bed Body : Made in China

Control System : FANUC JAPAN

Spindle : ROYAL TAIWAN

Spindle Servo Motor : FANUC JAPAN

Three Axis Servo Motor : FANUC JAPAN

Bearing : NSK JAPAN

Linear Guide : PMI / HIWIN (TAIWAN)

Lead Screw : PMI / HIWIN (TAIWAN)

Electrical Appliances : SCHNEIDER (FRANCE)

Oil Pump : Proton / Baoyu (TAIWAN)

Lubrication Cylinder : Proton / Baoyu (TAIWAN)

Spindle Oil Cooler : Made in CHINA

Tool Magazine : OKADA TAIWAN


Following Accessories :

Cutting Cooling System

Spindle Air Blowing Device

Automatic Lubrication and Warning Device

LED lighting work light

Fully Enclosed Protective Cover

Manual Book

Three-Phase Transformer

RJ-45 Interface

Network Transmission Line

Cleaning Air Gun

Cleaning Water Gun

Chip Auger

Specifications

ManufacturerSMART CHOICE
ModelSC-VMC855
ConditionNew
Stock Number00118
