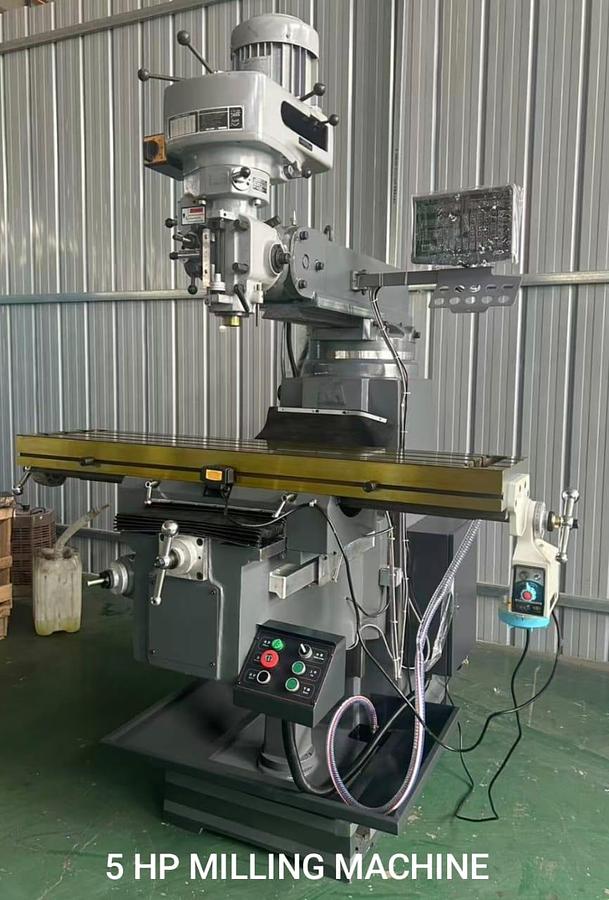

SMART CHOICE 5HP HEAVY DUTY MILLING MACHINE

Working Area : 1370 x 305 mm

Longitudinal Travel Of Worktable (X) : 850 mm

Horizontal Travel Of Worktable (Y) : 400 mm

Vertical Travel (Z) : 380 mm

Spindle Hole Taper : NT40 (105 mm)

Distance From Spindle End To Worktable : 150 - 480 mm

Distance From Spindle Center To Column Guide Rail : 100 - 650 mm

Spindle Speed Range : 80 - 5440 r/min

Number Of "T" Slot On Worktable : 3

"T" Slot Width : 16 mm

"T" Slot Spacing : 80 mm

Main Motor Power : 3.75 Kw

Dimensions : 1800 x 1750 x 2300 mm

Gross Weight : 1300 Kg

Tooling Package Included :

Clamping Kit CK12

ER40 Milling Chuck With Collet Set (One)

6 Inch Hydraulic Vise (One)
