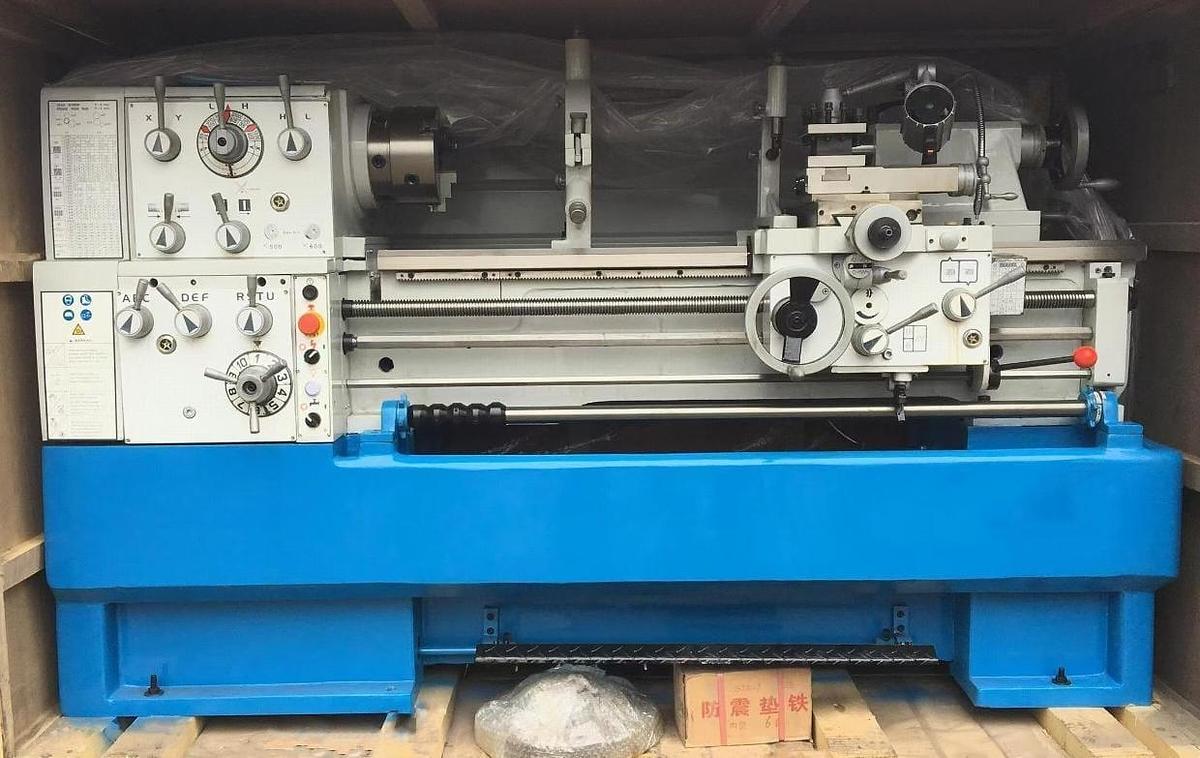

SMART CHOICE S410-1000 PRECISION LATHE TURNING MACHINE

Max Swing Over Bed : 410 mm

Max Swing Over Cross Slide : 220 mm

Distance Between Centers : 1000 mm

Width Of Bed : 300 mm

Spindle Nose : D1-6

Spindle Bore : 59 mm

Spindle Taper : MT6

Range Of Spindle Speed : 12 Changes,25-2000 r/min

Max Travel Of Top Slide : 128 mm

Max Travel Of Cross Slide : 285 mm

Max Section Of Tool : 25 x 25 mm

Longitudinal Feeds Range : 42 Kinds,0.031-1.7 mm/rev

Cross Feed Range : 42 Kinds,0.014-0.784 mm/rev

Metric Threads Range : 41 Kinds,0.1 - 14 mm

Tailstock Quill Diameter : 60 mm

Tailstock Quill Travel : 128 mm

Tailstock Quill Taper : MT4

Main Motor Power : 5.5Kw (7.5HP) 3PH

Coolant Pump Power : 0.1Kw (1/8HP) 3PH

Dimensions : 2200 x 1080 x 1340 mm

Gross Weight : 1670 Kg

Standard Accessories : Included

3 Jaw Chuck 200 mm

4 Jaw Chuck 250 mm

Coolant System

Working Lamp

Foot Brake

Steady Rest

Follow Rest

Chasing Dial Indicator

Change Gears Set

DRO For Two Axis
