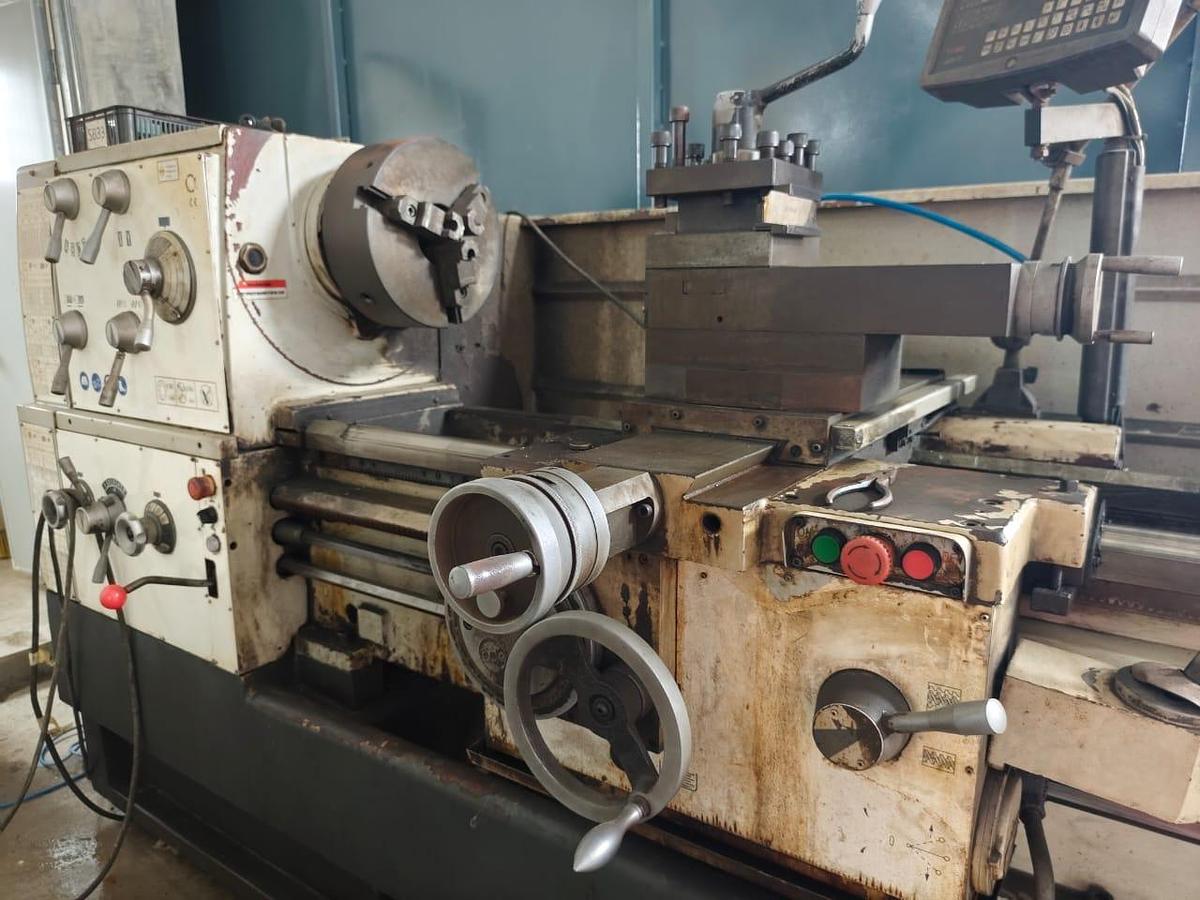

2018 SMART CHOICE C6266B/2000 GAP BED TURNING LATHE MACHINE
2018 SMART CHOICE C6266B/2000 GAP BED TURNING LATHE MACHINE
Contact us for price
Location:Malaysia
or
Call +60122967876
Description
- Max. swing dia. over bed : 660 mm
- Max. swing dia.in gap : 870 mm
- Max. swing dia. over slides : 420 mm
- Max. workpiece length : 2000 mm

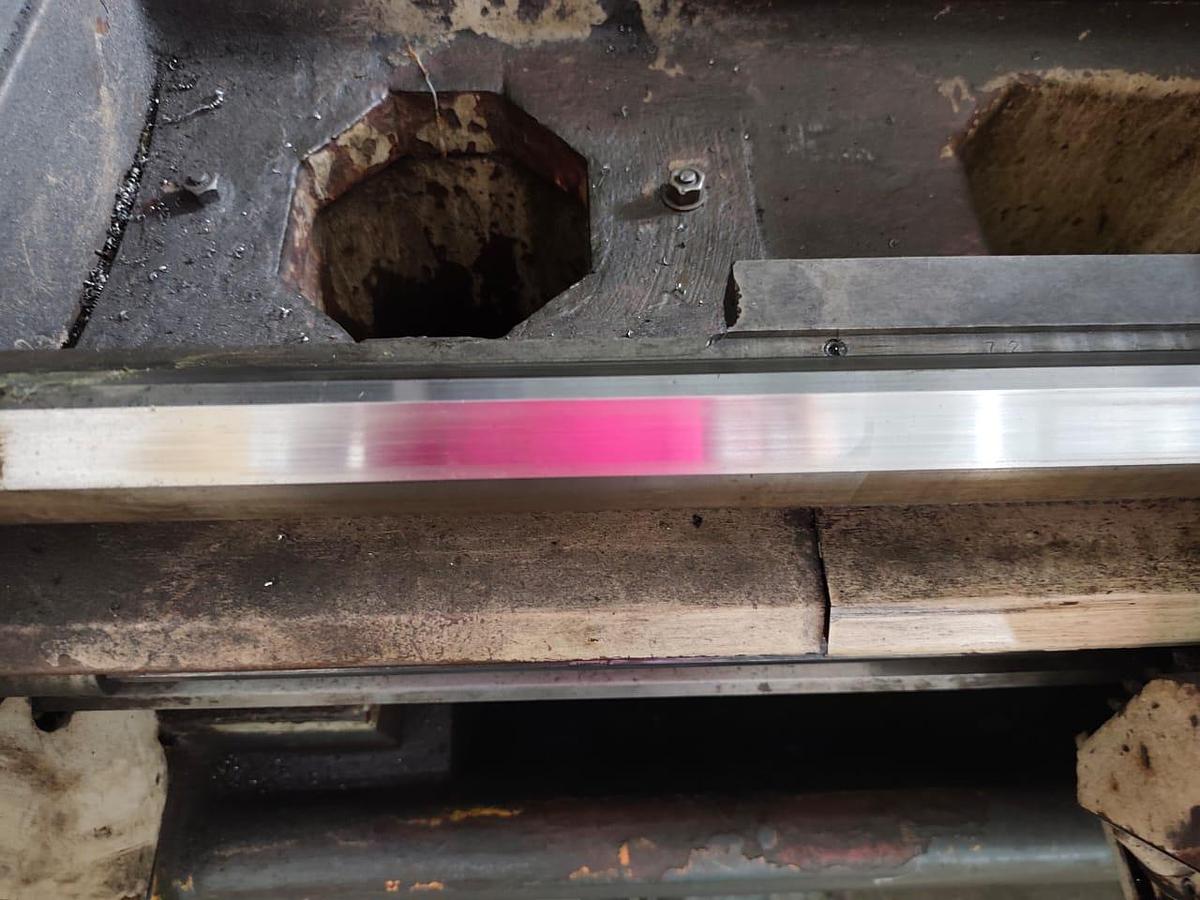

- Bed width : 400 mm
- Spindle bore diameter : 82 mm

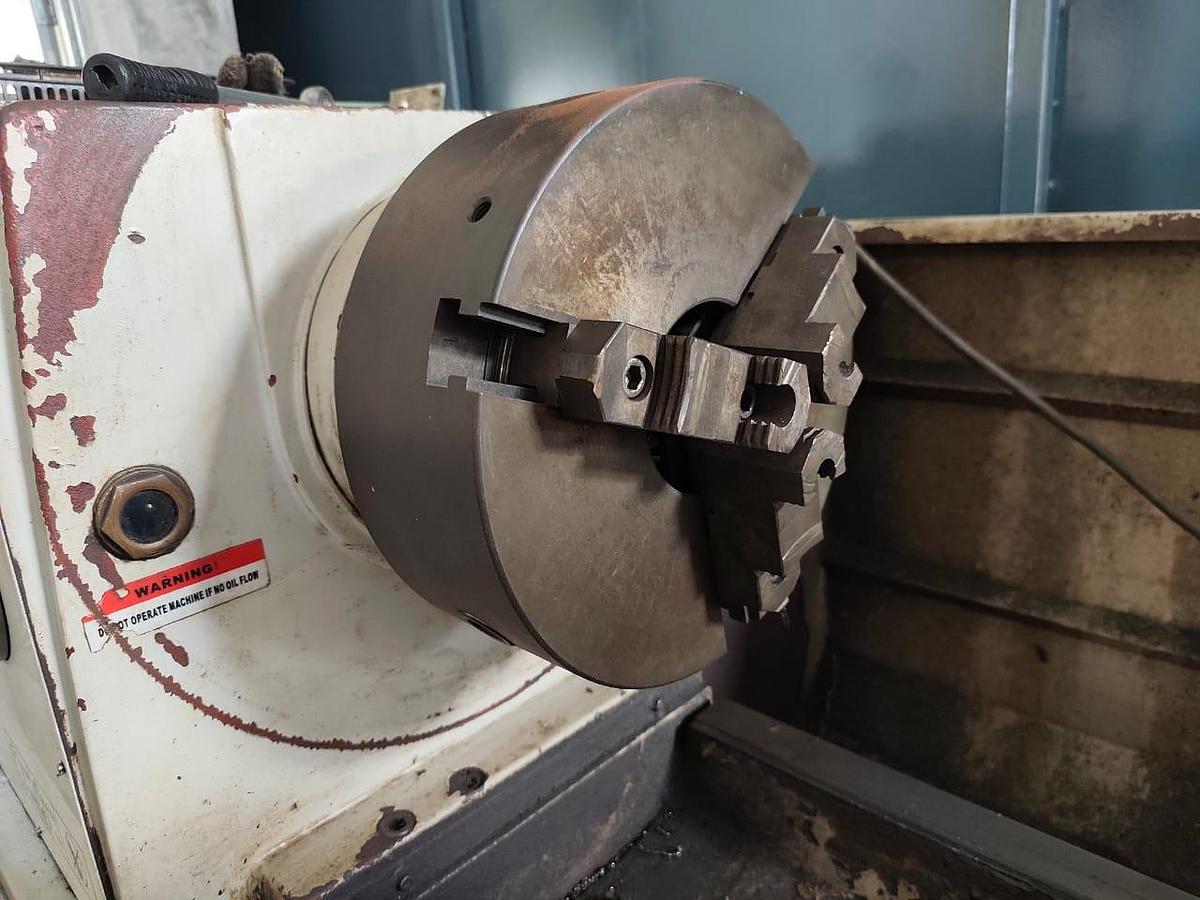

- Type of spindle nose : ISO 702/II NO.8 cam-lock type
- Spindle speed rpm 24 steps 9-1600

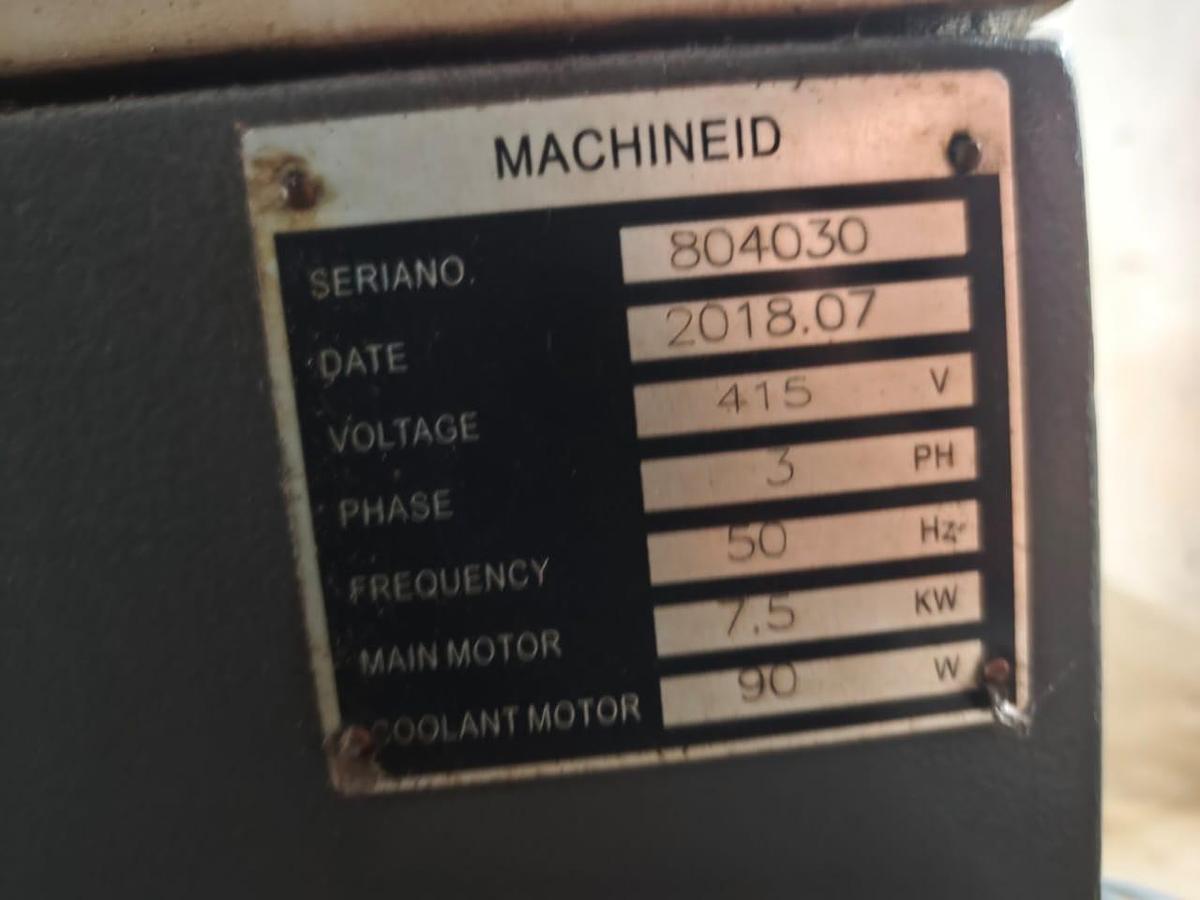

- Spindle motor power : 7.5Kw

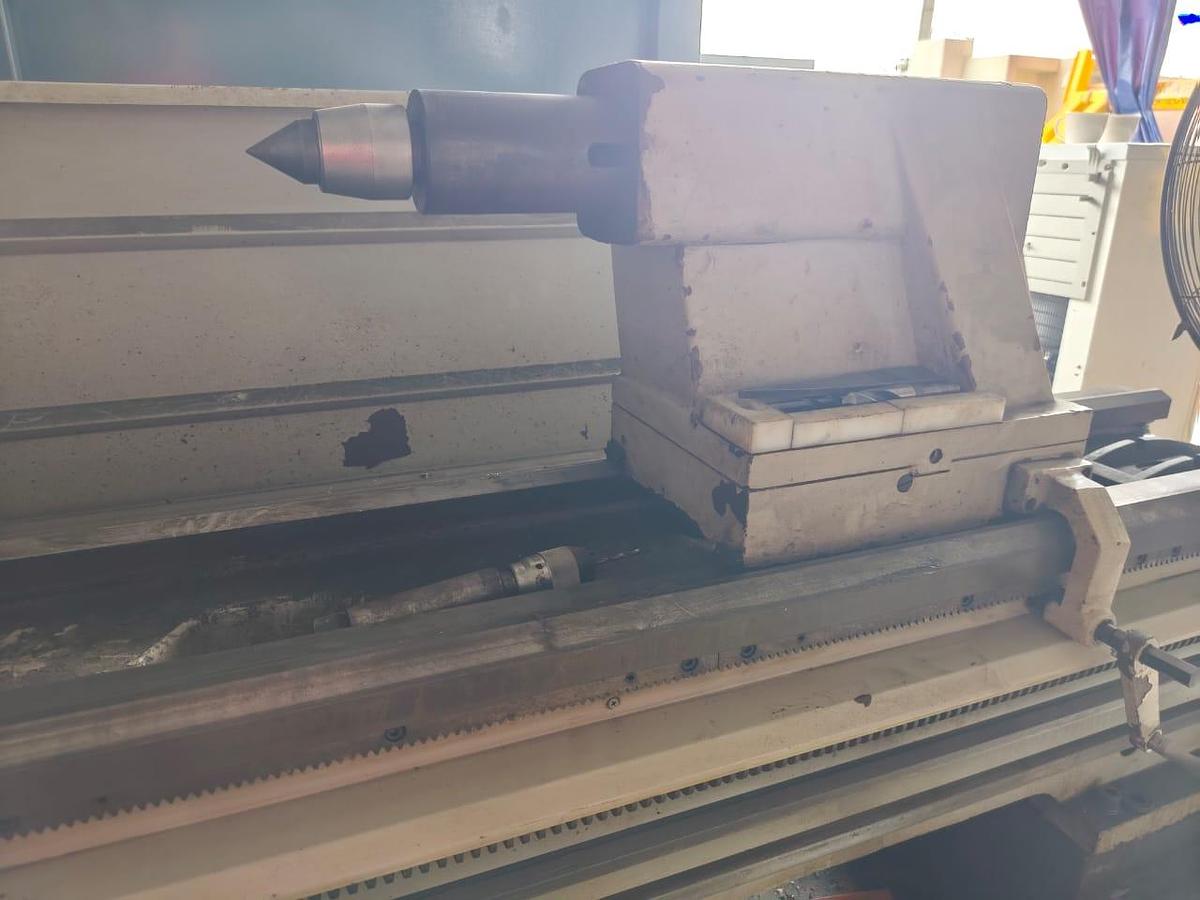

- Tailstock Diameter of quill : 75 mm
- Max. travel of quill : 150 mm
- Taper of quill (Morse) : MT5

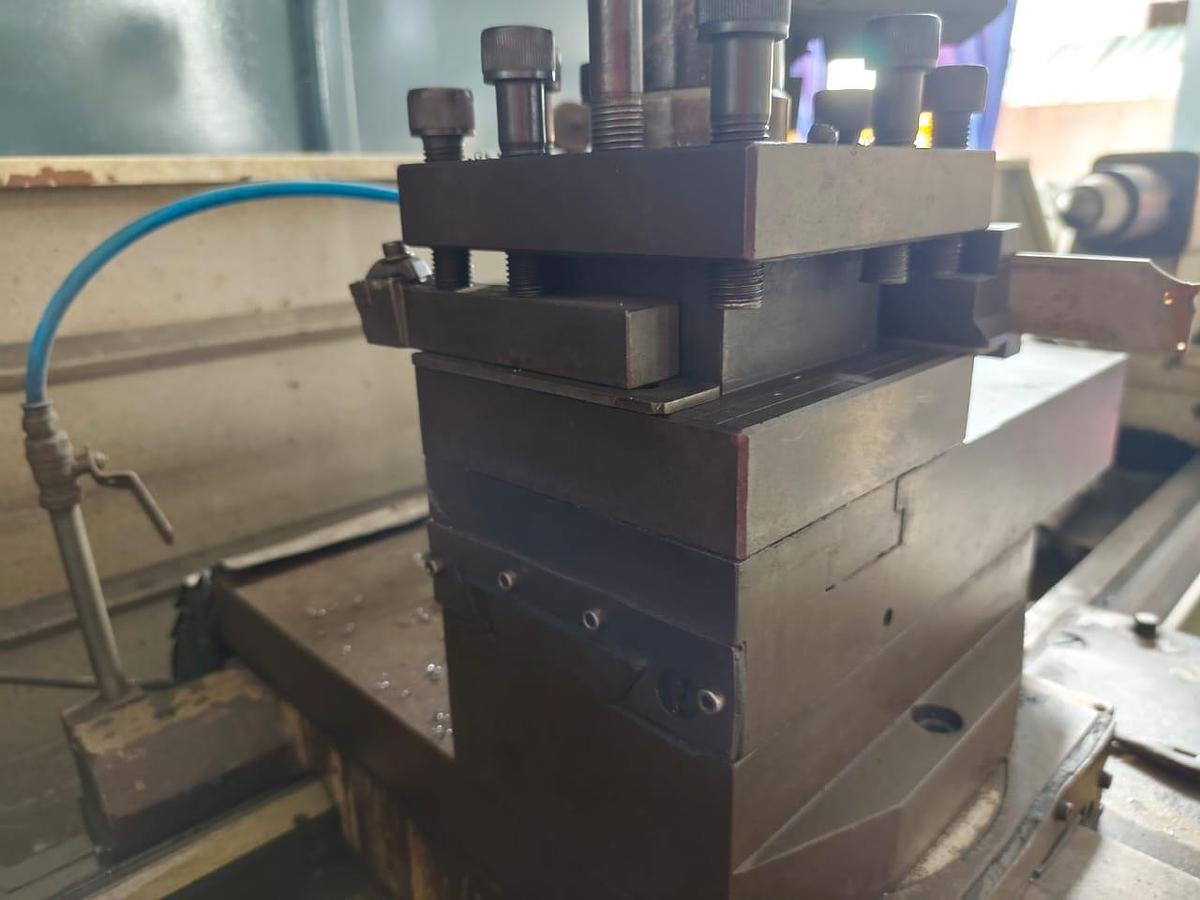

- Turret Tool O.D. size : 25 x 25 mm
- Feed Max. X travel : 145 mm
- Max. Z travel : 310 mm
- X feed range mm/r : 65 kinds 0.063-2.52(standard)
- Z feed range mm/r : 65 kinds 0.027-1.07(standard)
- Metric threads (mm) 48 kinds 0.5-224
- Inch threads (t.p.i) : 46 kinds 72-1/8
- Module threads (πmm) : 42 kinds 0.5-112
- Diametricpitch threads (t.p.i.π) :45 kinds 56-1/4
- Length : 3632 mm
- Width : 975 mm
- Height : 1450 mm
- Weight : 2600 Kg
Specifications
| Manufacturer | SMART CHOICE |

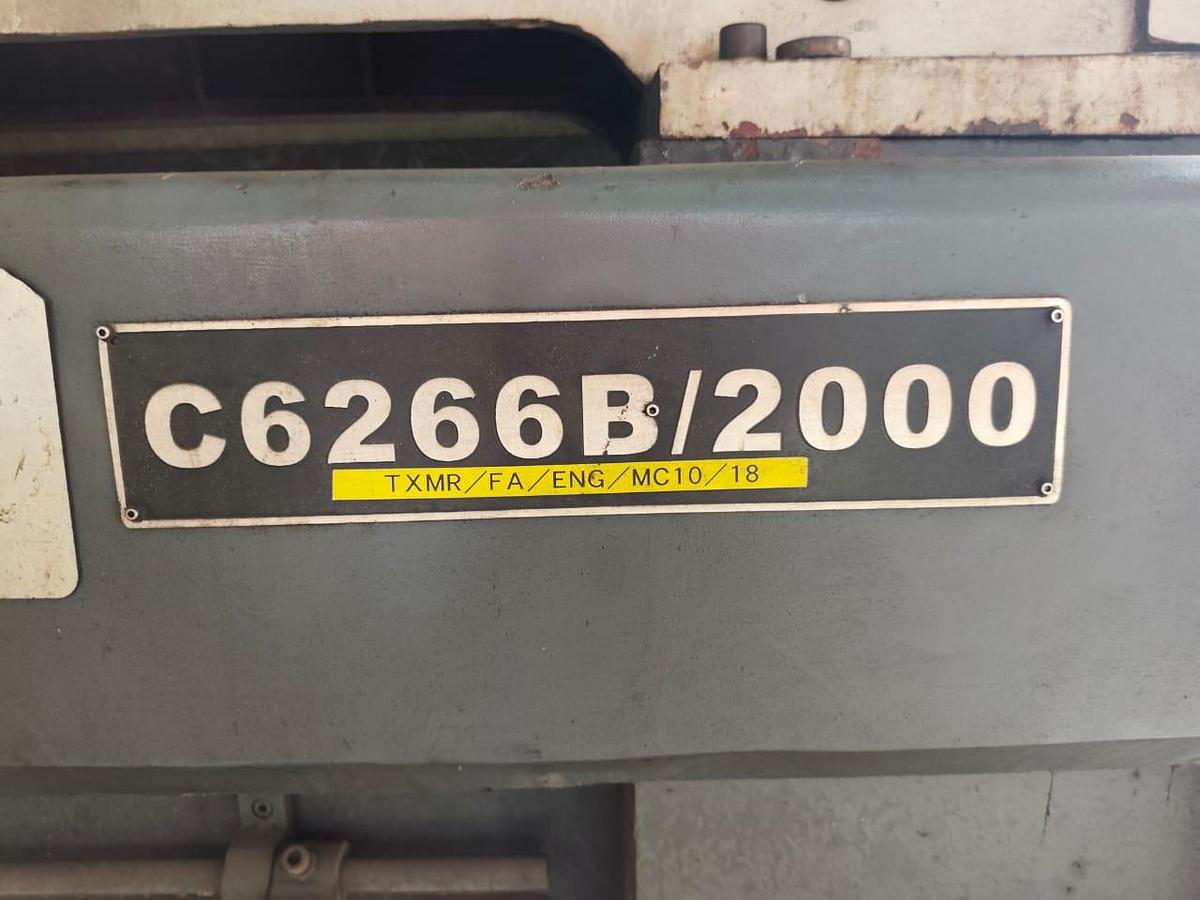

| Model | C6266B/2000 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 00110 |
| * Bed width | 400 mm |
| * Max. workpiece length | 2000 mm |
