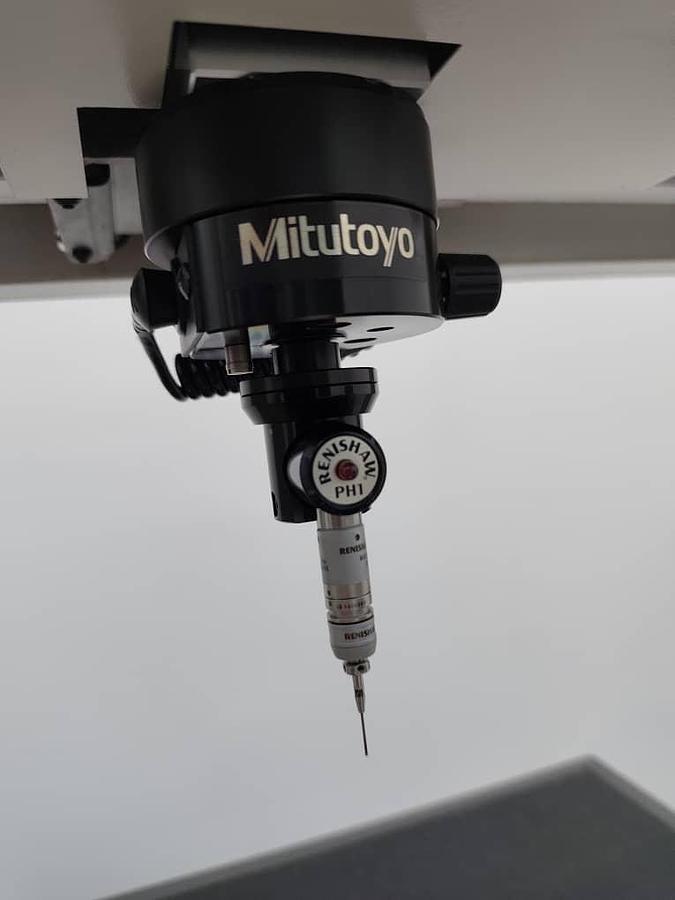

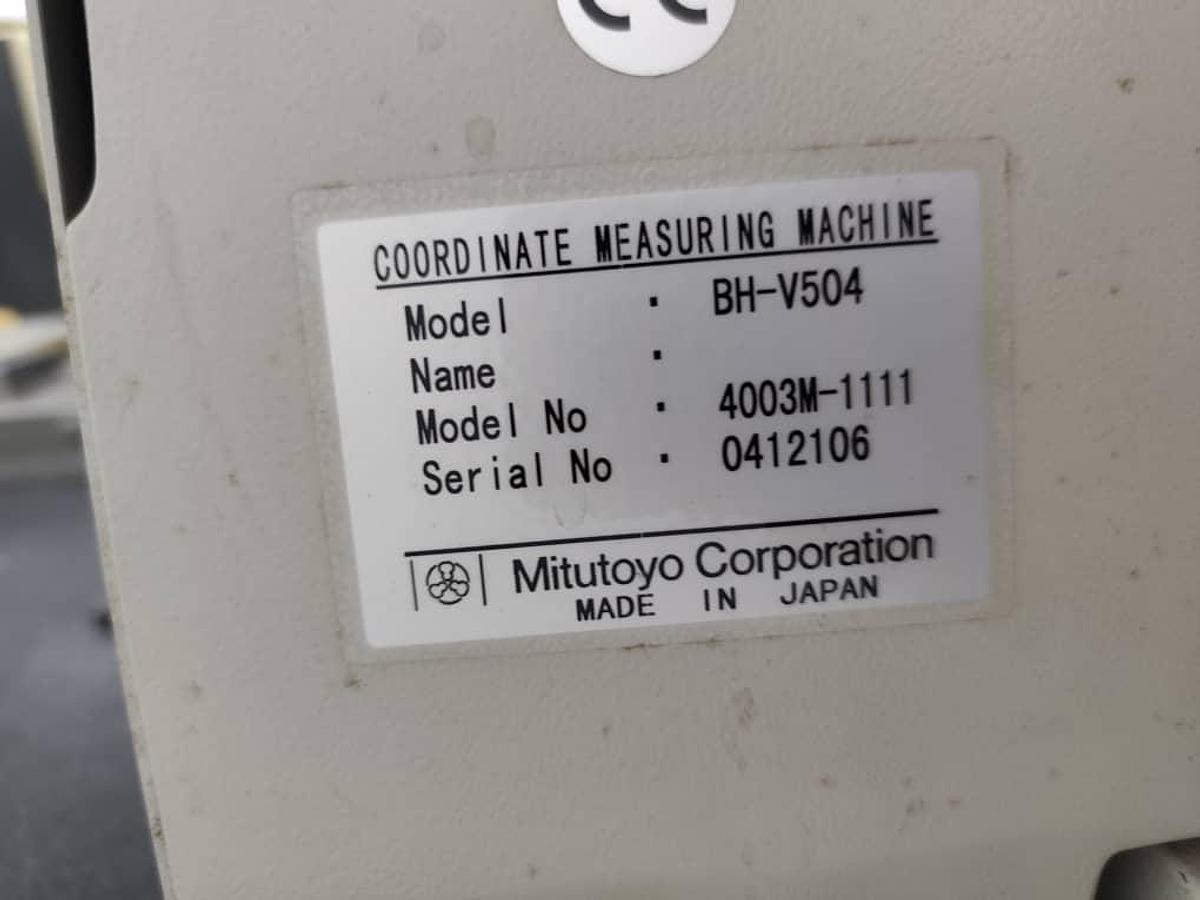

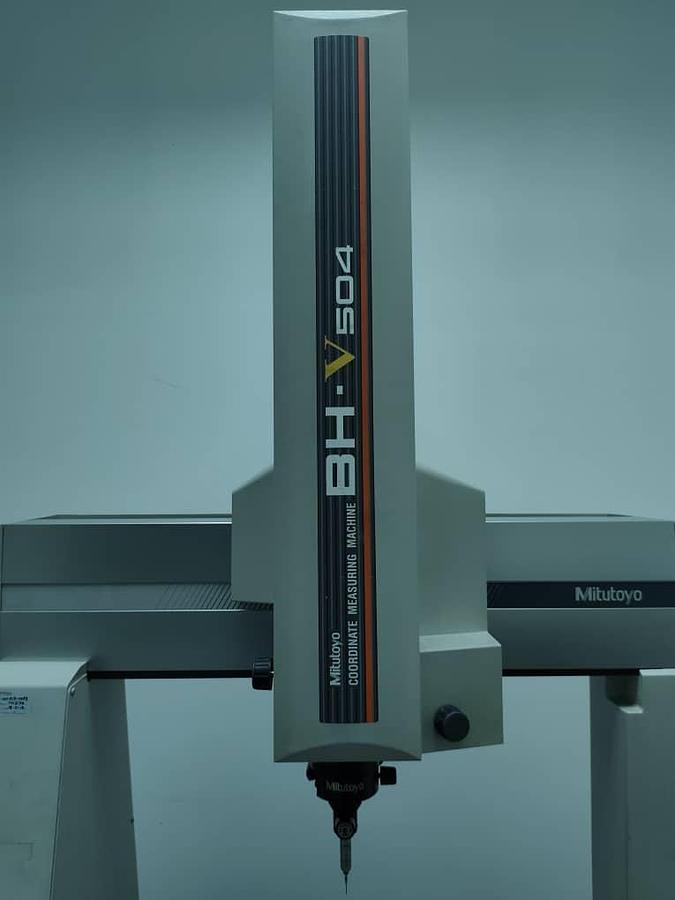

Mitutoyu BH-V504 CNC Coordinate Measuring Cmm Machines(Manual)

X-axis 500mm

Y-axis 400mm

Z-axis 400mm

Length standard Reflective linear encoder

Resolution 0.0005mm (.00002")

Accuracy (20.C)* E=(4.0+5L1000)m

Guide method Air bearing for each axis

Maximum workpiece height*** 482mm

Maximum workpiece weight 160kg

Air pressure 0.4MPa (4kgf/cm2) or 58 PSI

Air consumption 40 liters per minute (in normal state) or 1.44 CFM

Dimensions Width 1074mm

Dimensions Depet 938mm

Dimensions Height 437kg

Mass (including the mass of the machine stand) 2238mm
