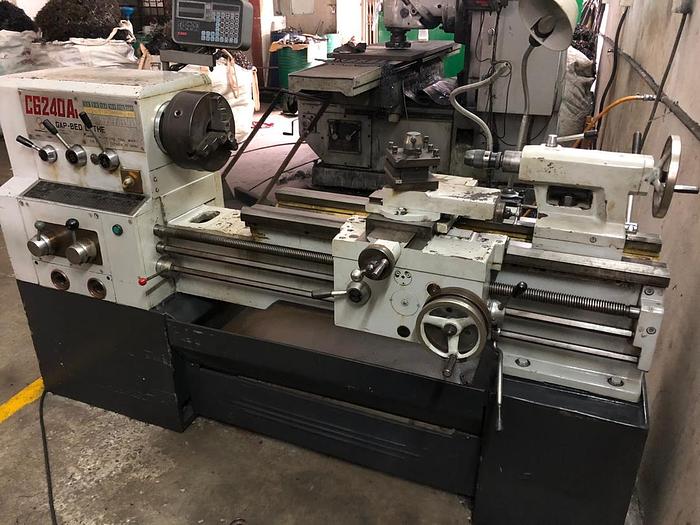

CHINA BRAND C6240A MANUAL LATHE MACHINE

CHINA BRAND C6240A MANUAL LATHE MACHINE

$3,000 (USD)

Location:Malaysia

orCall +60122967876

Description

Max.distance of between centers 1000mm Max.swing over bed φ400mm Max.swing over tool-post φ220mm Max.swing over gap φ575mm Bore of spindle φ52mm Height of centers 200mm Taper of bore in spindle Morse No.6 Number and range of spindle speeds 19∼1700rpm Number of spindle cross/longitudinal feeds 145 Range of spindle longitudinal feeds 0.04∼3.91mm/r Range of spindle cross feeds 0.02∼1.95mm/r Metric thread number/pitches range 30/0.45∼20mm withworth thread number/pitches range 35/80∼1.75t.p.i Module thread number/pitches range 25/0.25∼6mm Max.travel of cross tool-post 255mm Max.travel of upper tool-post 130mm Rotating angle range of tool-post ±45° Power of main motor 4/5.5kw Power of cool pump 125w Delivery of cool pump 25L/min Overall dimensions(L*W*H)mm 2421/2921*1053*1463 Net weight (kg) 1800

Specifications

ManufacturerCHINA BRAND
ModelC 6240A
Year2008
ConditionUsed
