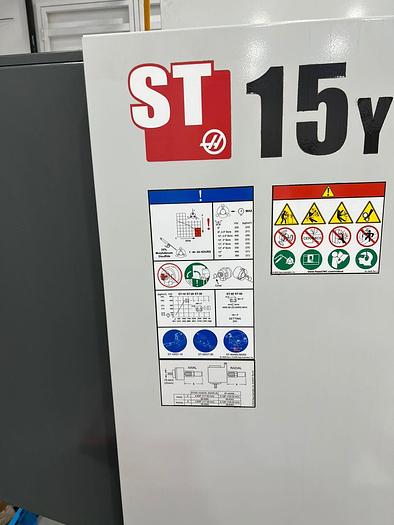

2021 HAAS ST-15Y CNC TURN MILL MACHINE

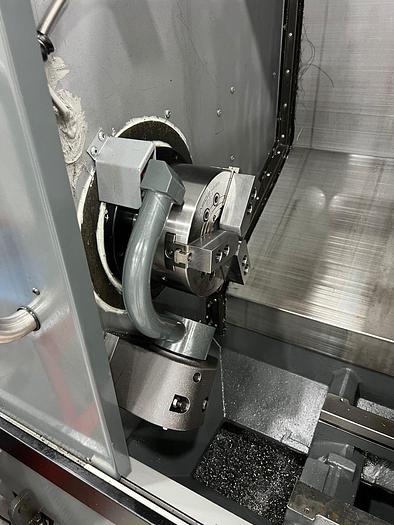

Chuck Size 8.3 in (210 mm)

Max Part Swing16.5 in (419 mm)

Max Cutting Diameter (with BMT45 turret) 11.00 in (279 mm)

Max Cutting Length (varies with workholding)16.0 in (406 mm)

Bar Capacity 2.50 in (64 mm)

X Axis 7.9 in (200 mm)

Y Axis ± 2.0 in (±51 mm)

Z Axis 16.0 in (406 mm)

Spindle Nose A2-6

Max Rating 20.0 hp14.9 kW

Max Speed 4000 rpm

Max Torque150.0 ft-lbf @ 500 rpm203.0 Nm

Bore ø3.50 in (88.9 mm)

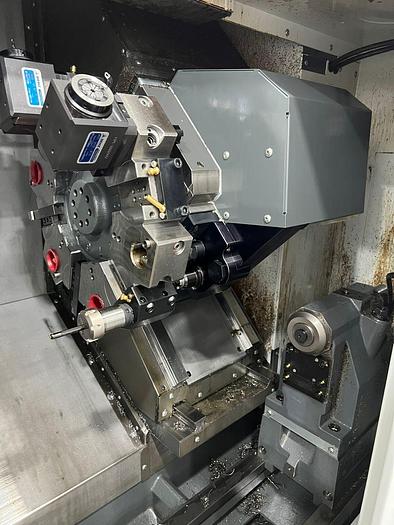

12 tool atc

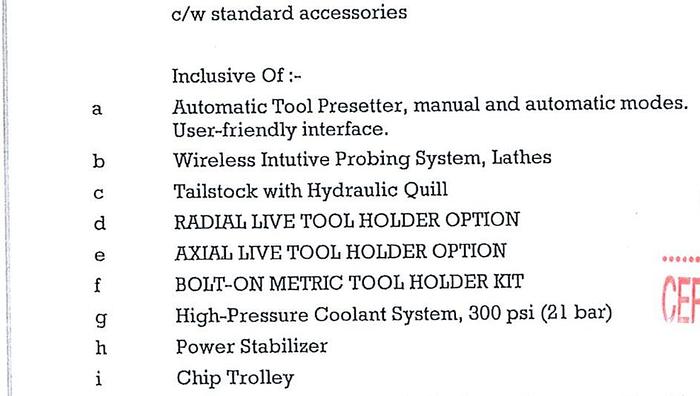

with tailstock
