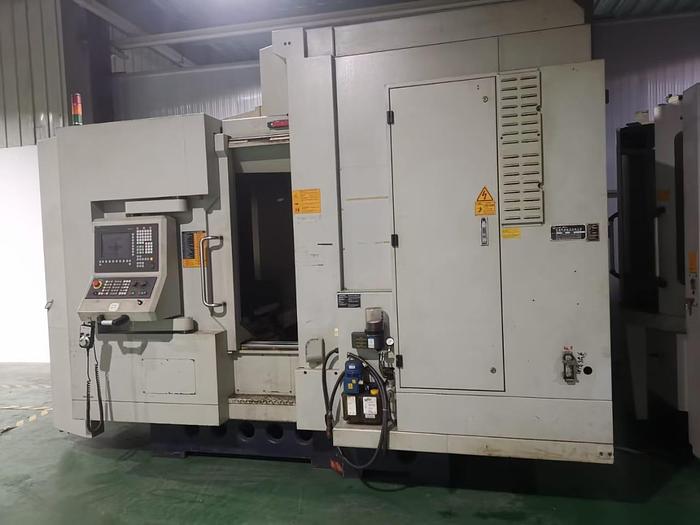

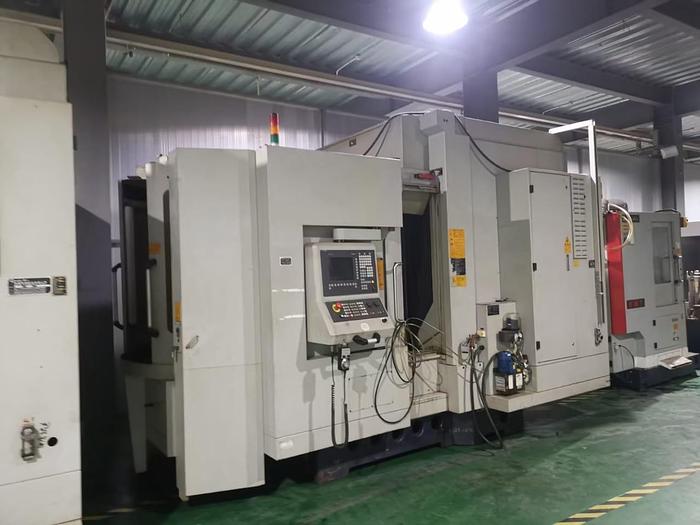

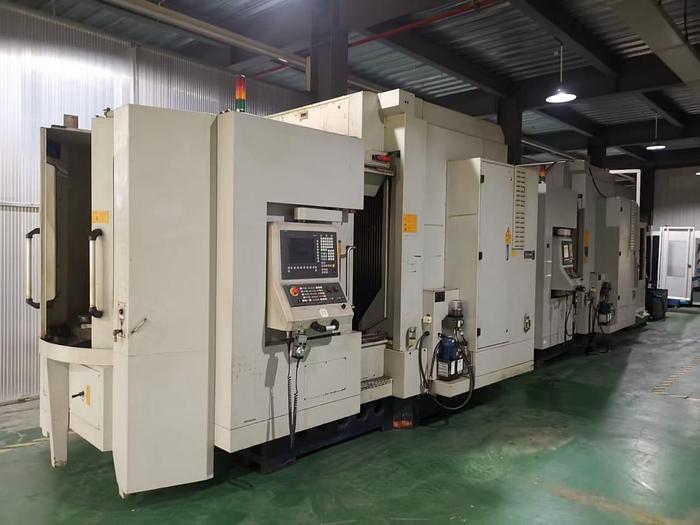

2016 H-56 Quick Jet Horizontal Milling & Boring Machining Center In Malaysia

X axis (table left/right): 500 mm

Y axis (spindle up/down): 600 mm

Z axis (spindle in/out): 600 mm

X/Y/Z drive protection: direct torque limit coupler

Max. load (eve): 500 Kgs

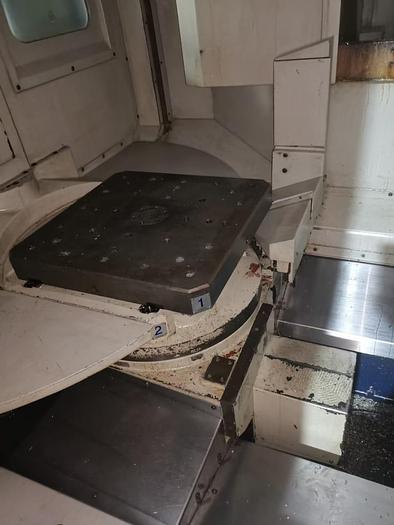

Minimun pallet indexing angle : 0.001°(standard)，1°(optional)

Height (from floor) : 1,020 mm

pallet speed : 11.1 rpm/min(0.001°)，16.6 rpm/min(1°)

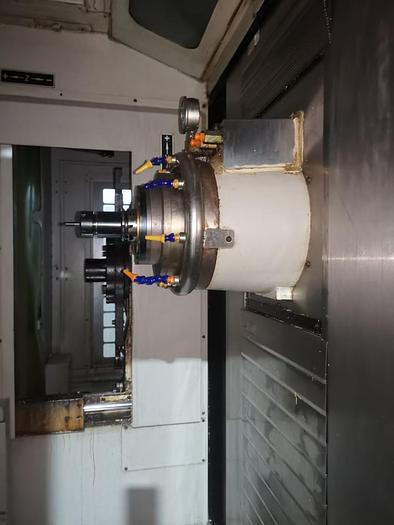

Taper : HSK-A63

Spindle speed : 24,000 rpm

Motor : 24 Kw，69Nm

Oil chiller : ±1℃ of ambient shop temperature

Cutting feed : 1-48,000 mm/min

X,Y,Z rapid traverse : 48,000 mm/min (0%,30%,50%,100%)

Max. tool dia. : Ø42 mm

Max. tool length : 220 mm

Max. tool weight : 7 Kg

Tool storage capacity : 60 tools

Pressure / Consumption : 6 kg/cm2 / 750 l /min

Capacity : 40 KVA

Motor : 0.58 Kw x 2

Coolant pump : 140 L

Machine dimension (LxWxH) : 4,238 x 3,132 x 2,812 mm

Machine weight : 8,500 kg
