Tsugami M08J-2 CNC TURNING LATHE MACHINE

Tsugami M08J-2 CNC TURNING LATHE MACHINE

Contact us for price

Location:Malaysia

orCall +60122967876

Description

Max machining Diameter : 280mm / 65mm Barstock

Max machining length : 290mm

Swing over bed : 540mm

Main spindle chuck : 8 inch (Build In Spindle)

Main spindle speed : Max 4000 rpm

Main spindle end face configuration : JIS A2-6

Main spindle bore : 73mm

Main spindle draw tube ID : 66mm

Main spindle bearing ID : 100mm

Number of turret stations : 8pcs

OD tool size : 25mm

Main spindle motor : 9/11 Kw

Stroke x axis and z axis : X axis - 160mm Z axis - 330mm

X axis Linear Guide

Z axis Box way

Tail stock : Yes (MT-4)

Chip Conveyor : YES (Include)

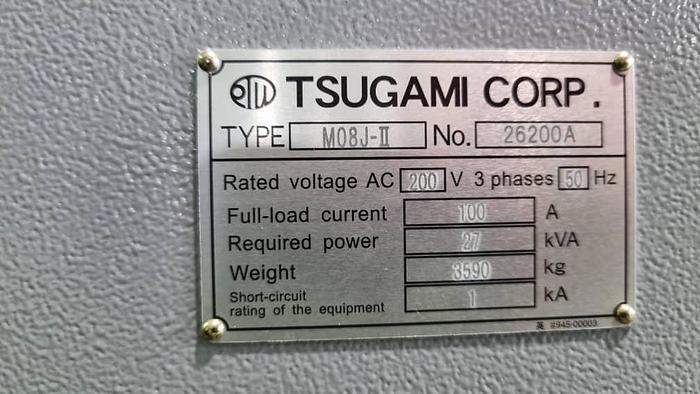

Power source requirement : 27KVA

Compressed air requirement : 0.5 MPa

Coolant Tank Capacity : 145 L

Size (WxDxH) : 1865 x 1673 x 1600 mm

Weight : 3300Kg

Specifications

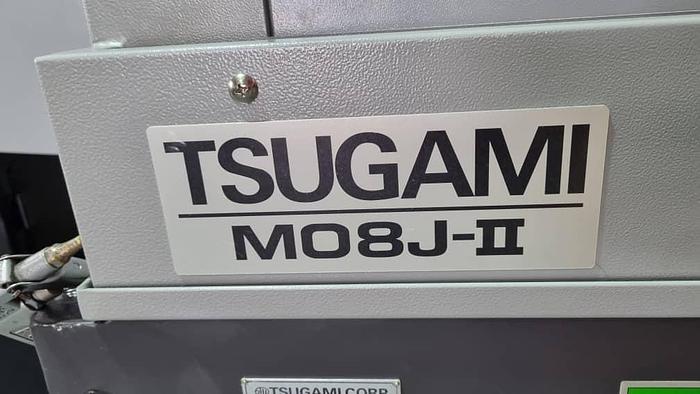

ManufacturerTsugami
ModelM08J-2
ConditionNew
