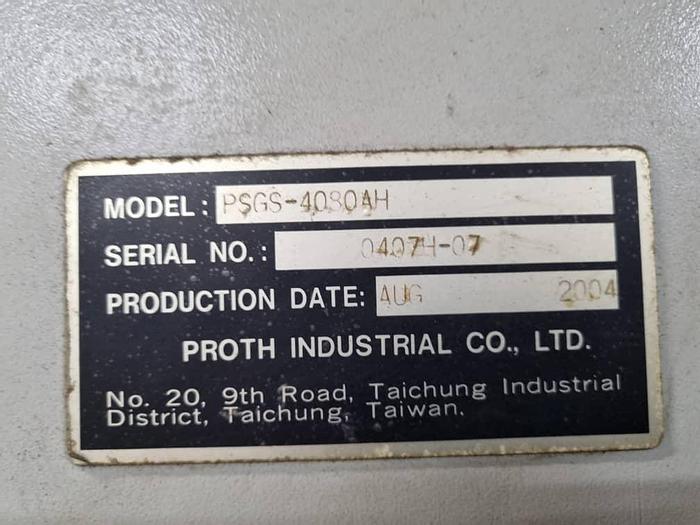

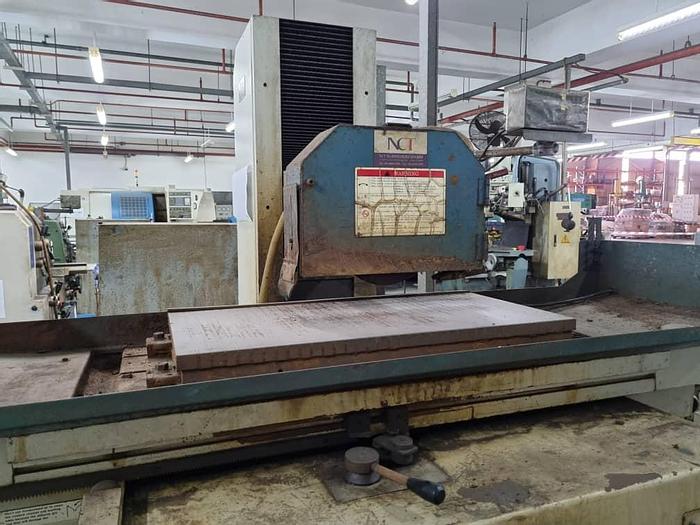

2004 PROTH PSGS-4080AH GRINDING MACHINE

PSGS-4080AH

General Capacity

Max. travel (cross x longitudinal) 460x900mm

Spindle center height from table 600mm

Max height from table top to bottom of standard wheel

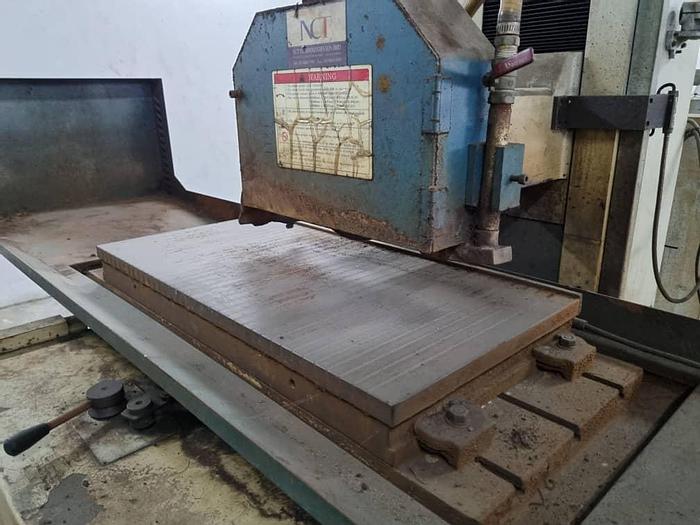

Grinding surface of table 400x800mm

Longitudinal Movement

Hydraulic table speed 1-25(0.3-25)m/min

Cross Movement

Intermittent cross feed-approx.(Electro-mechanical) 0.1-10mm/feed

Continuous cross feed-approx.(Electro-mechanical) 1000mm/min

Hand feed per revolution 4mm

Hand feed per division 0.02mm

Vertical Downfeed

Rapid traverse approx.(option) 200mm/min

Hand feed per revolution 1mm

Hand feed per division 0.005mm

Grinding Wheel

Dimension(O.D x W x I.D) 355x38x127mm

Spindle speed(50/60Hz) 1500/1800 r.p.m.

Motor

Spindle motor 3.7(5.6)kW/5(7.5)HP

Hydraulic motor 2.2KW/3HP

Weight

Net weight 2800kg

Gross weight 3400kg
