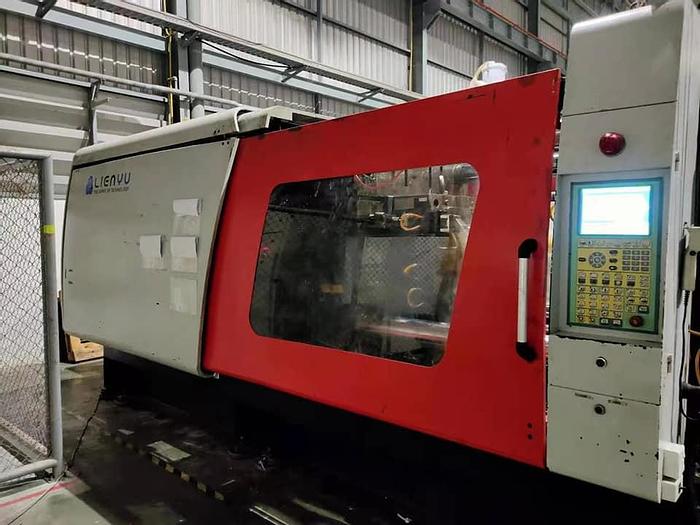

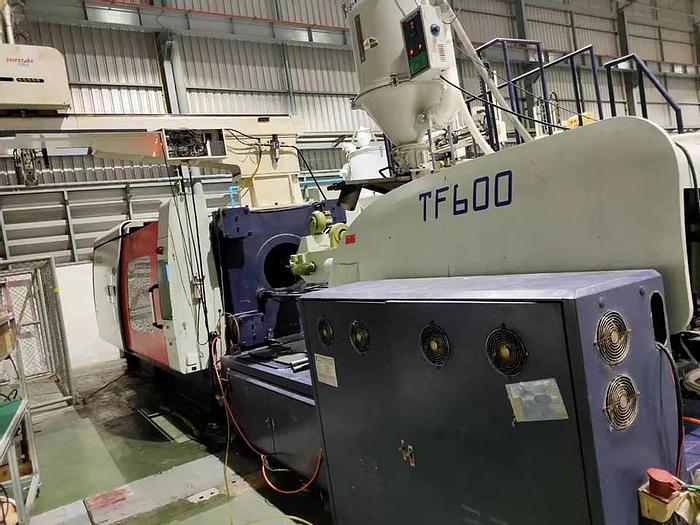

2017 LIENYU TF 600 PLASTIC INJECTION MACHINE

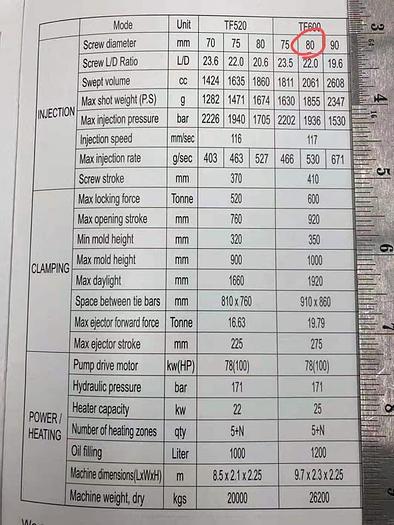

Screw Diameter : 80mm

Screw LL/D Ratio : 22 L/D

Swept volume : 2061cc

Max shot weight (P.S): 1855g

Max injection pressure : 1936 bar

Injection speed : 117mm/sec

Max injection rate : 530g/sec

Screw stroke : 410mm

Max loading force : 600 tonne

Max opening stroke : 920mm

Min mold height :350mm

Max mold height : 1000mm

Max daylight : 1920mm

Space between tie bar : 910 x 860 mm

Max ejector forward force : 19.79 tonne

Max ejector stroke : 275mm

Hydraulic pressure : 171 bar

Heater capacity : 25Kw

Number of heating zones : 5 + N qty

Machine dimensions(LXWXH) : 8500 x 2100 x 2250mm

Machine weight : 20000Kg
